OG Gutter
Stratco
SKU: OG-Gutter

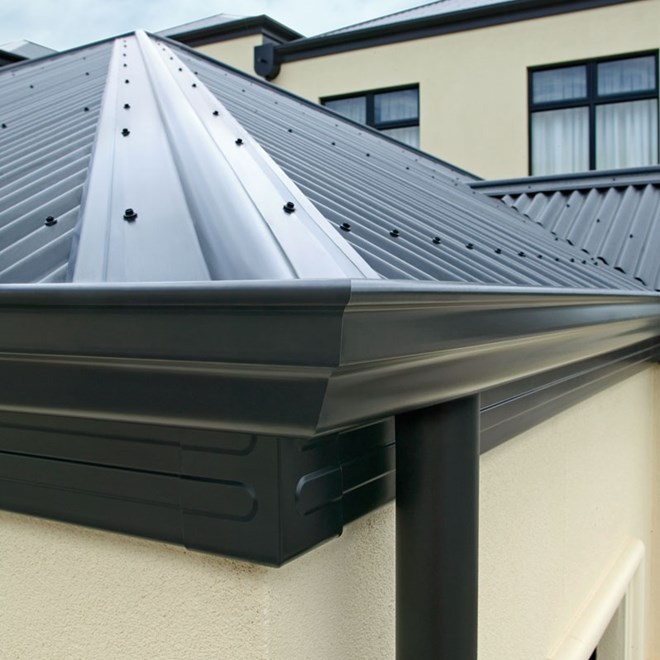

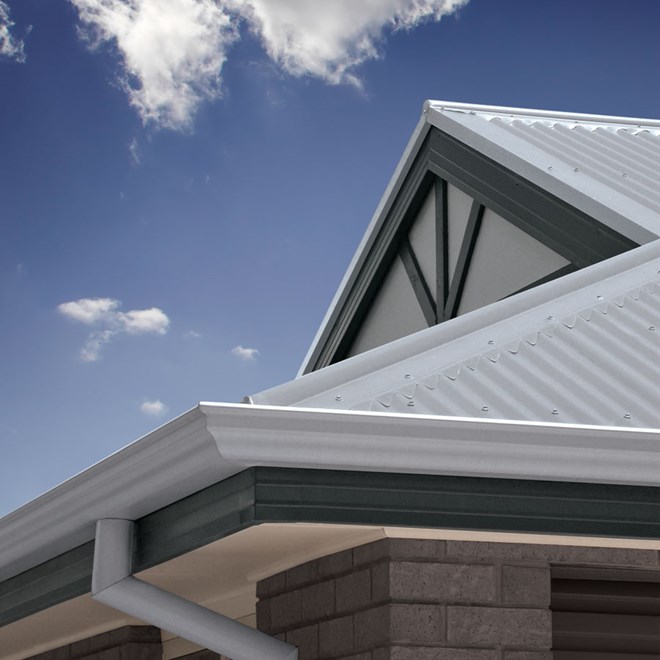

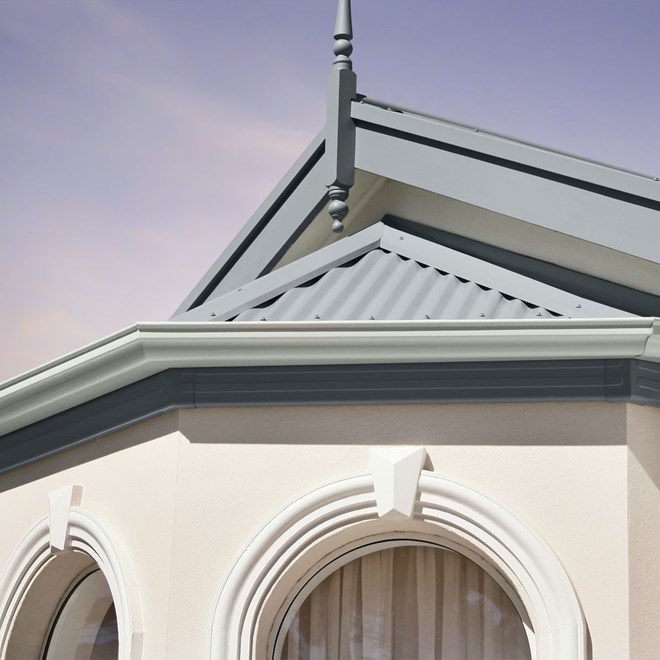

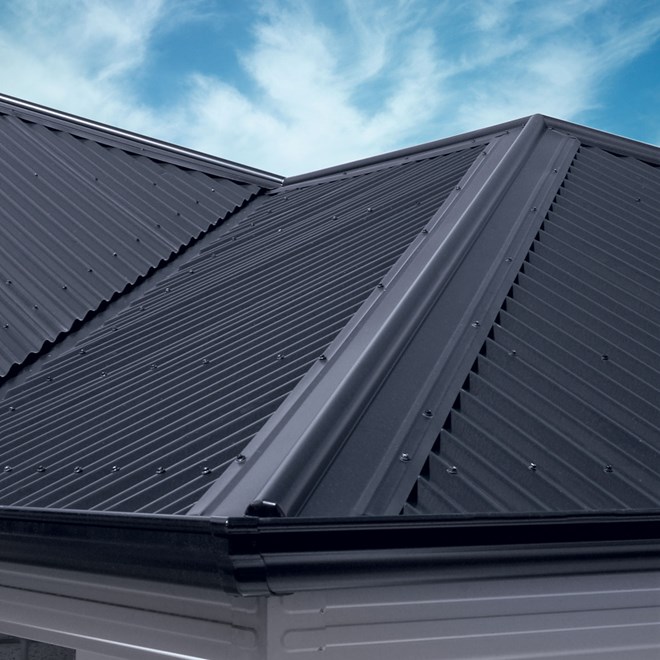

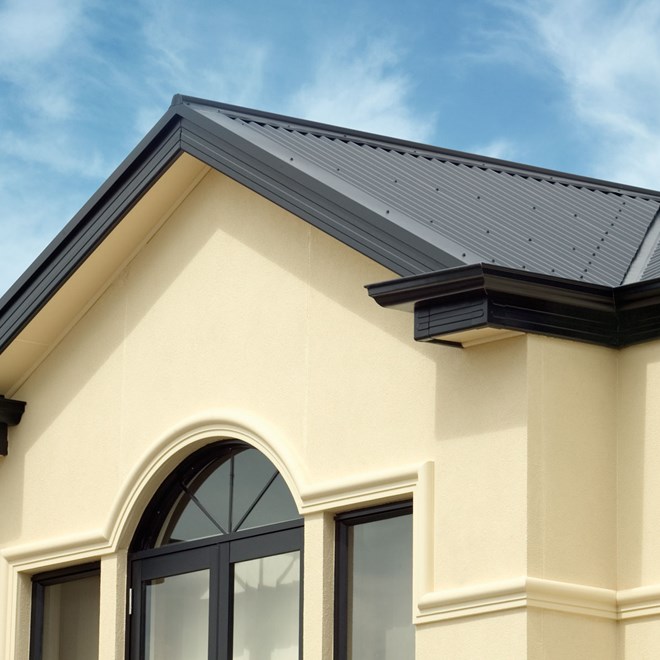

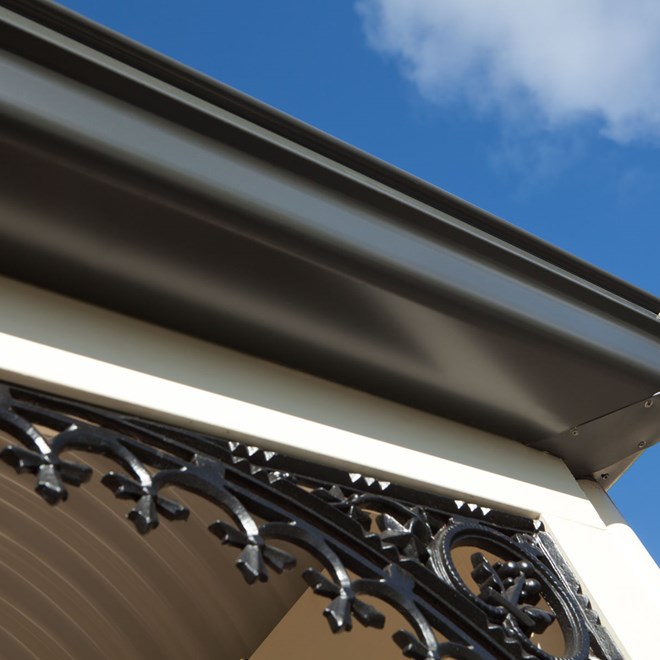

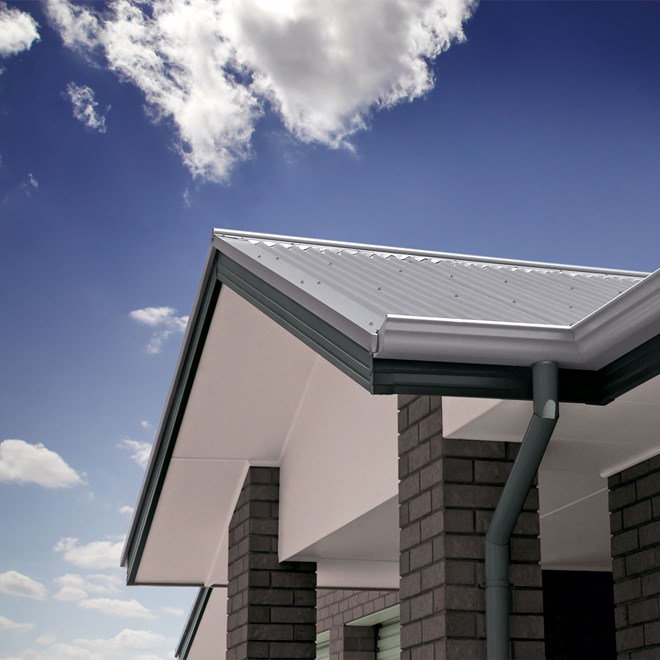

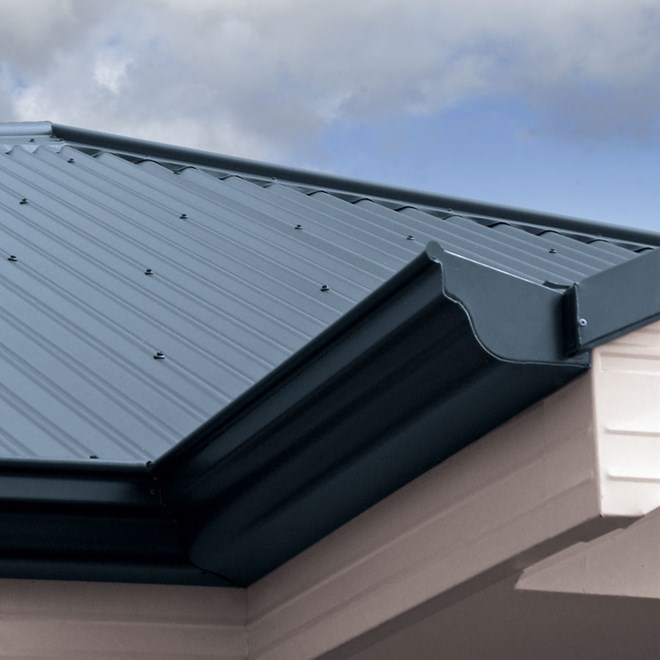

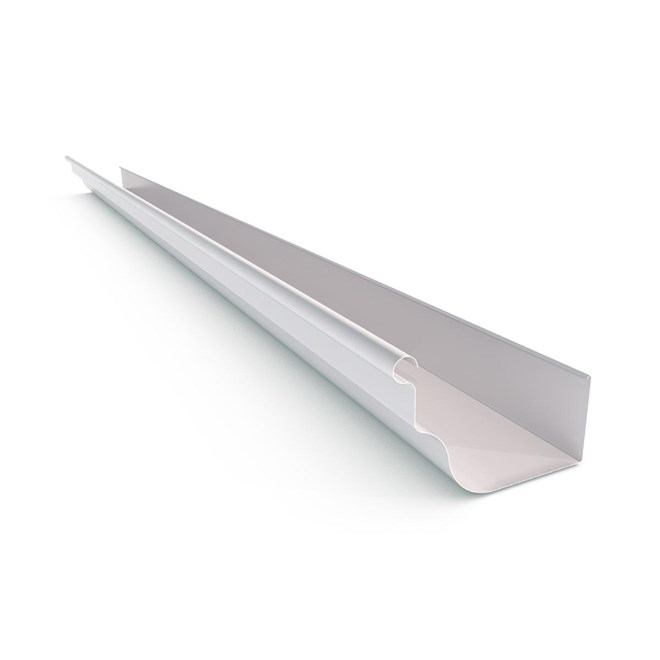

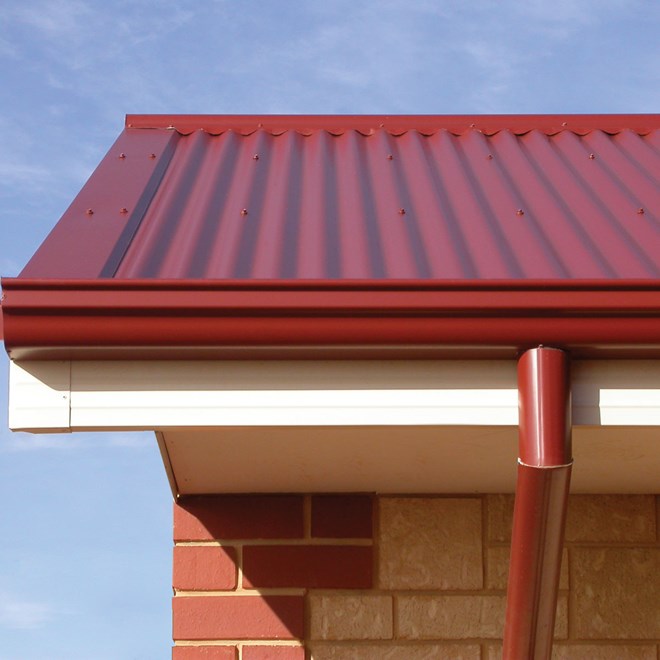

OG Gutter has a traditional, charismatic profile. OG stands for 'Old Gothic'. The style of OG Gutter makes it the ideal choice for use on both traditional and modern homes. It is available in a huge range of colours. Manufactured in Rotorua.Image gallery
Traditional Elegance
Guttering that exudes traditional charm and character.

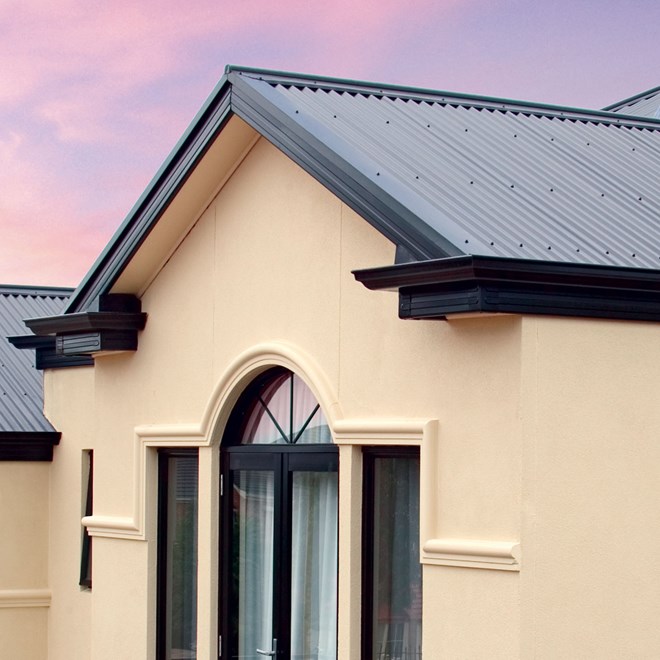

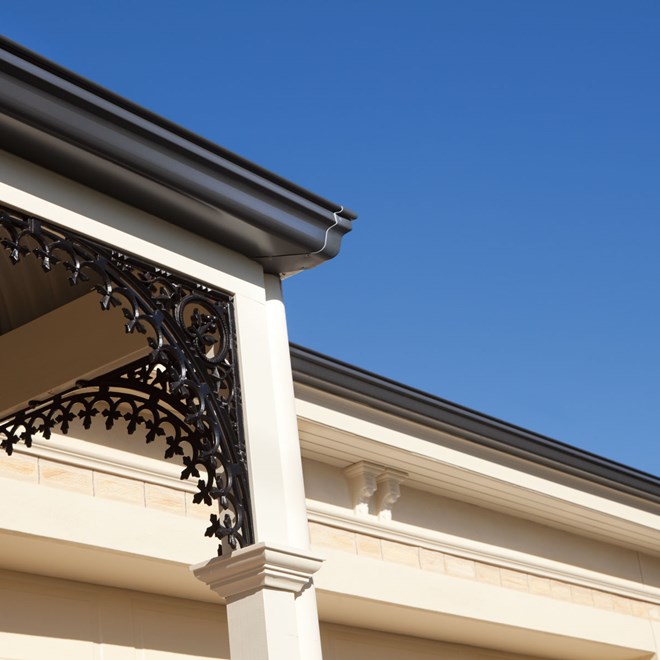

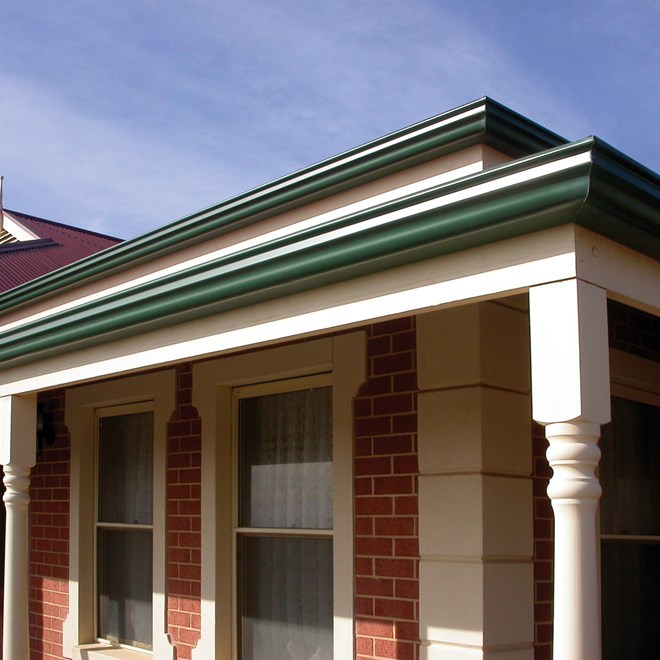

Featuring elegant, ornate, flowing lines that exude traditional charisma. Stratco OG or 'Old Gothic' gutter imparts a classic style to both modern and period homes.
Stratco OG Gutter can be ordered in un-painted zinc/al or in a huge range of pre-painted steel colours. Finish your project with a comprehensive range of OG Gutter accessories including stop ends and brackets.
Available Colours:
Brochures & Installation Guides
Specifications
| Specifications | |
| Tensile (MPa) | BMT (mm) |
|---|---|
| G250/300 | 0.55 |
| Rainfall Intensity (ARI) mm/hr | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 |
| Catchment Area Per Downpipe (m2) | 99 | 83 | 71 | 62 | 55 | 50 | 45 | 41 | 38 | 35 | 33 | 31 | 29 | 27 | 26 | 25 |

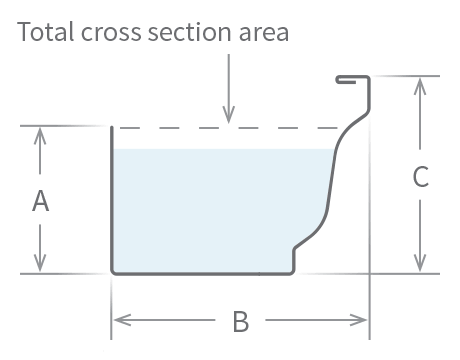

Dimensions
|
Dimensions (mm)
|
|
| A | 61 |
|---|---|
| B | 125 |
| C | 90 |
Gutter Accessories

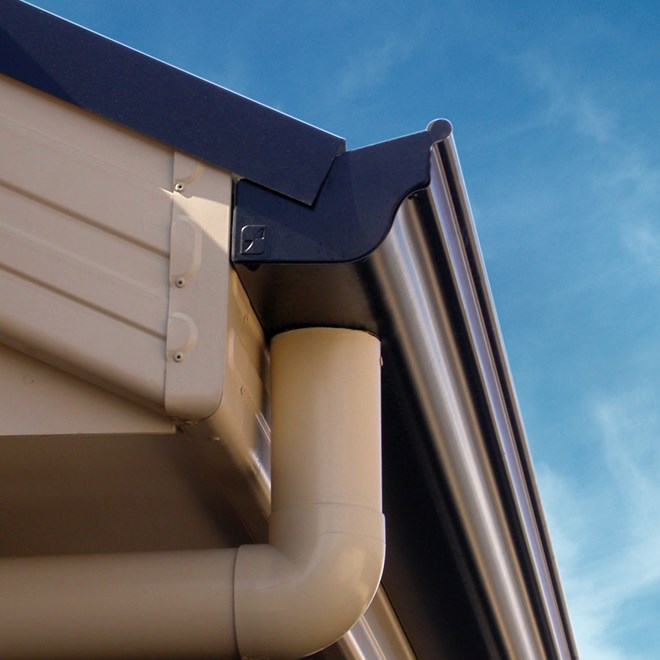

Stop End
Individual stop ends can be supplied in left and right hand ready for on site installation.
External Bracket
External gutter brackets are fixed on to the fascia at 1.2 metre intervals using a string line. They provide a more traditional look and are visible on the external face of the gutter.
Internal Str-8-line Strap
Internal gutter straps hold the face of the gutter into position. They are installed internally at 1.2 metre intervals and are not visible on the external gutter face.

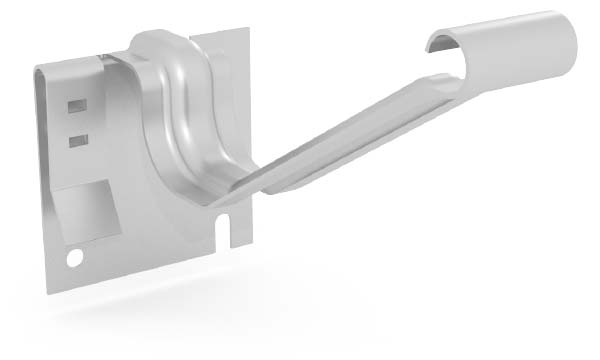

Timber Fix Clip
Timber fix clips are used on timber fascia, a simple solution for replacing existing gutter on a building.
Note: Availability is state specific, please check prior to ordering.
