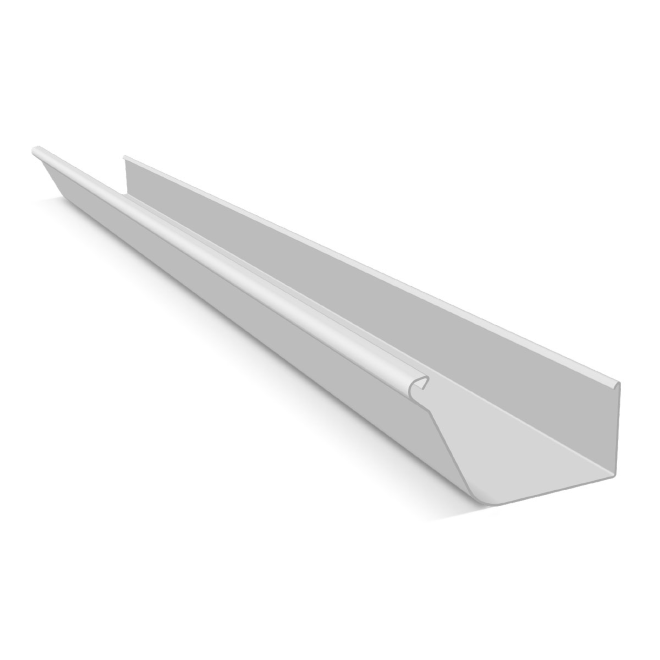

Quarter Round Gutter
StratcoSKU: Quarter-Round
Quarter Round is a classic 150mm gutter profile with crisp and clean lines. This profile matches well with the new Stratco Continuous Steel Fascia. Manufactured in Cromwell, Napier, Nelson and Rotorua.Attractive, High Quality Guttering
Quarter Round Gutter features a strong, attractive profile.
Quarter Round is a classic gutter profile with crisp and clean lines. Available from our standard pre-painted colour range in 150mm, this profile matches well with the new Stratco Continuous Steel Fascia.
Available in the full spectrum of colours, the clean, attractive curves of Stratco Quarter Round Gutter will compliment contemporary, heritage and architecturally designed homes.
Available Colours:
Brochures & Installation Guides
Specifications
| Specifications | |||
| Tensile (MPa) | BMT (mm) | Capacity (mm²) | Total Cross Section Area (mm²) |
|---|---|---|---|
| G300 | 0.55 | 6100 | 6770 |
Note: Calculation of the effective cross sectional area ‘Capacity’ is based on the requirements of section 3.8 AS/NZS 2179.1:1994.
| Rainfall Intensity (ARI) mm/hr | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 |
| Catchment Area per Downpipe (m2) | 118 | 98 | 84 | 74 | 65 | 59 | 54 | 49 | 45 | 42 | 39 | 37 | 35 | 33 | 31 | 30 |
Dimensions
| Dimensions | |
| A | 62 |
|---|---|
| B | 144 |
| C | 89 |
| D | 82 |
Gutter Accessories
Stop End
Individual stop ends can be supplied in left and right hand ready for on site installation.
External Bracket
Brackets for gutters should be located close to all stop-ends, at both ends of sumps and rain-heads at a maximum of 750mm spacing for gutters less than 180mm wide, and at 600mm for gutters 180 – 300mm wide.
In snow load areas, spouting may be fitted with snow straps and brackets at a maximum of 600mm centres to withstand the additional potential weight of any snow build-up.
Internal Str-8-line Strap
Brackets for gutters should be located close to all stop-ends, at both ends of sumps and rain-heads at a maximum of 750mm spacing for gutters less than 180mm wide, and at 600mm for gutters 180 – 300mm wide.
In snow load areas, spouting may be fitted with snow straps and brackets at a maximum of 600mm centres to withstand the additional potential weight of any snow build-up.
