VC Gutter
Stratco
SKU: VC-Gutter

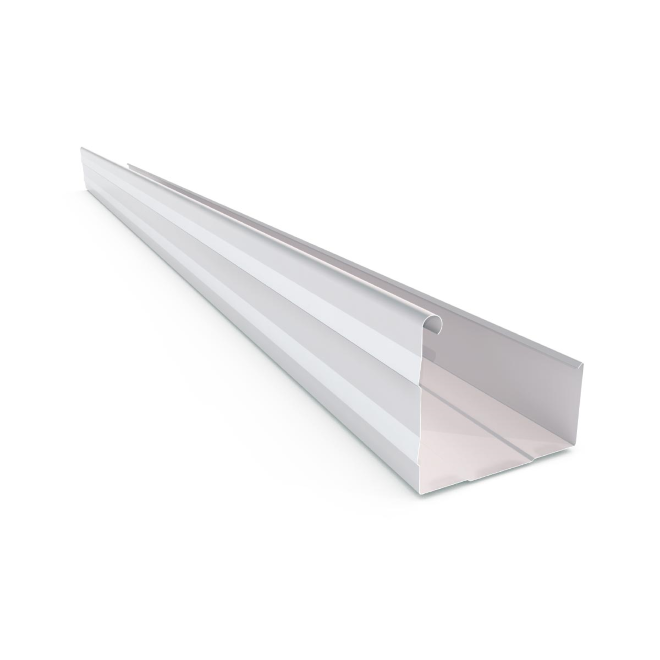

VC Gutter has a clean, modern appearance that suits contemporary styles. The square front is designed to hide the end of roofing and provide a neat face to architecture. VC Guttering is available with water overflow slots. Manufactured in Christchurch.Image gallery

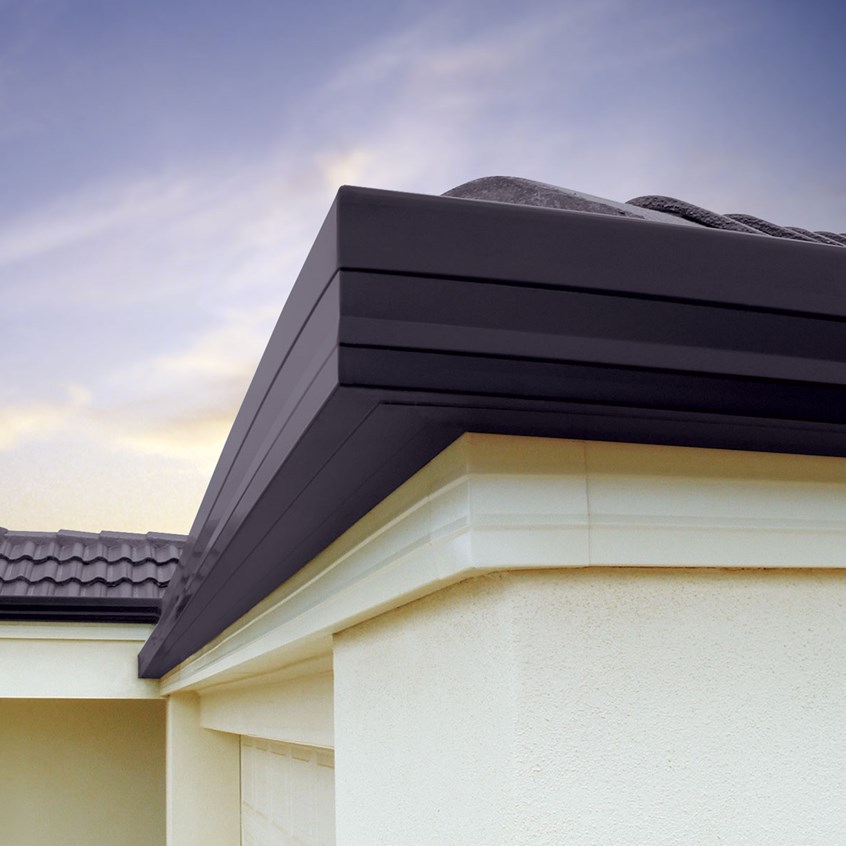

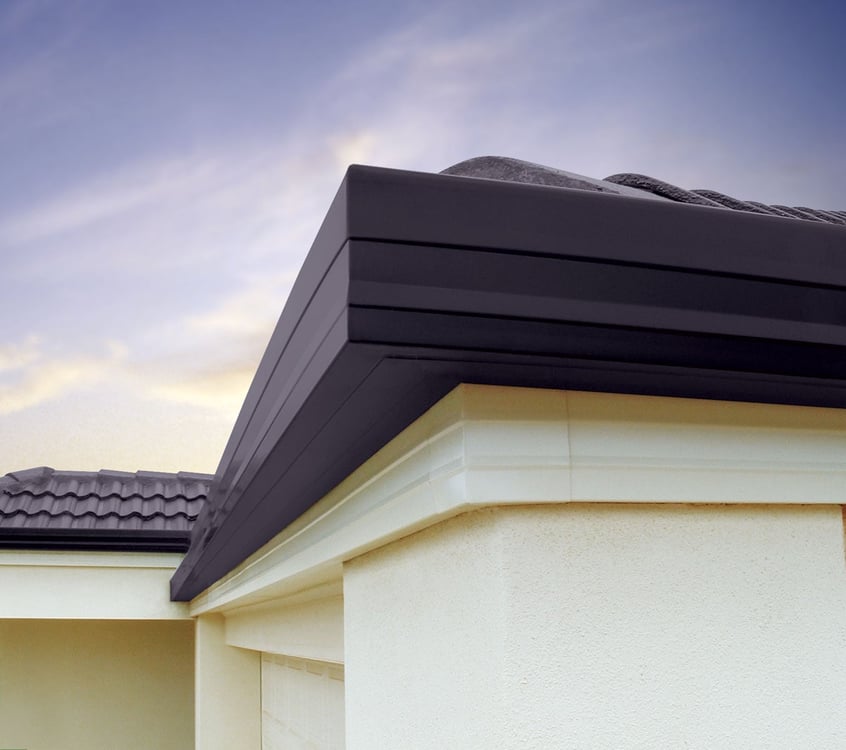

Clean and Modern Square Front Gutter
Hide the edge of roofing with a gutter that has crisp, clean lines.
Attractive square front guttering that has been designed to conceal the edge of roof sheets and tiles with a smooth clean gutter face. The front face of the gutter is available with slots to allow excess water to overflow in high rainfall areas.
VC Gutter is complemented by a large range of accessories including gutter brackets. Choose from an extensive range of pre-painted colours or from un-painted zinc/al.
Available Colours:
Brochures & Installation Guides
Specifications
| Specifications | ||||
| Tensile (MPa) | BMT (mm) | Type | Capacity (mm2) | Total Cross Section Area (mm2) |
|---|---|---|---|---|
| G300 | 0.55 | Standard | 5712 | 6893 |
| Slotted | 4412 | 5594 | ||
Note: Calculation of the effective cross sectional area ‘Capacity’ is based on the requirements of section 3.8 AS/NZS 2179.1:1994.
| Plain |
||||||||||||||||
| Rainfall Intensity (ARI) mm/hr | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 |
| Catchment Area Per Downpipe (m2) | 109 | 91 | 78 | 68 | 61 | 54 | 49 | 45 | 42 | 39 | 36 | 34 | 32 | 30 | 28 | 27 |
| Slotted |
||||||||||||||||
| Rainfall Intensity (ARI) mm/hr | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 |
| Catchment Area Per Downpipe (m2) | 73 | 61 | 52 | 46 | 41 | 36 | 33 | 30 | 28 | 26 | 24 | 23 | 21 | 20 | 19 | 18 |
Dimensions
| Dimensions (mm) | |
| A | 58 |
|---|---|
| B | 119 |
| C | 108 |
Gutter Accessories
Internal Str-8-line Strap
Brackets for gutters should be located close to all stop-ends, at both ends of sumps and rain-heads at a maximum of 750mm spacing for gutters less than 180mm wide, and at 600mm for gutters 180 – 300mm wide.
In snow load areas, spouting may be fitted with snow straps and brackets at a maximum of 600mm centres to withstand the additional potential weight of any snow build-up.
GP Bracket
Brackets for gutters should be located close to all stop-ends, at both ends of sumps and rain-heads at a maximum of 750mm spacing for gutters less than 180mm wide, and at 600mm for gutters 180 – 300mm wide.
In snow load areas, spouting may be fitted with snow straps and brackets at a maximum of 600mm centres to withstand the additional potential weight of any snow build-up.
Timber Fix Clip
Timber fix clips are used on timber fascia, a simple solution for replacing existing gutter on a building.
Note: Availability is location specific, please check prior to ordering.
