Outback® Sunroof

SKU: Outback-Sunroof

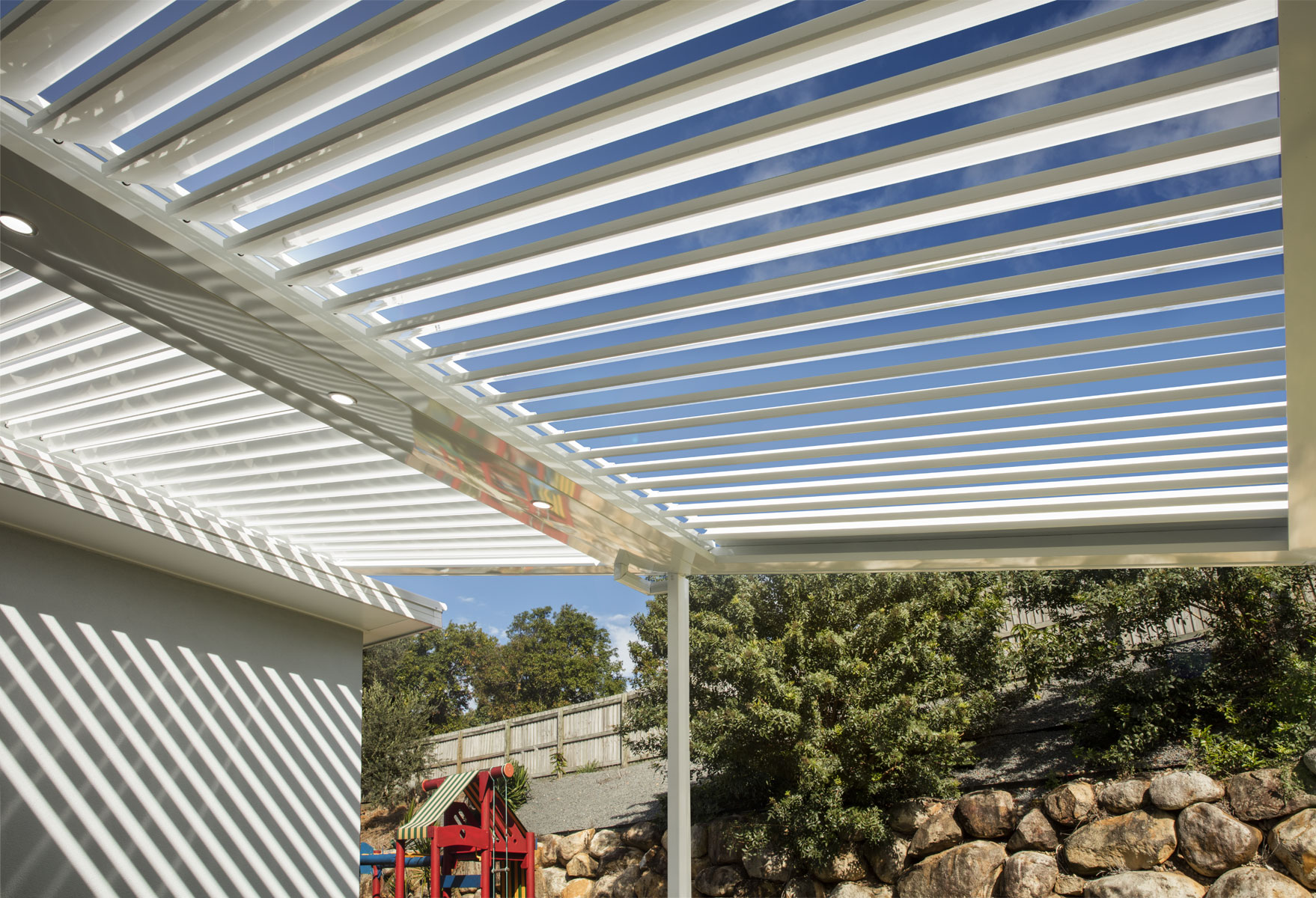

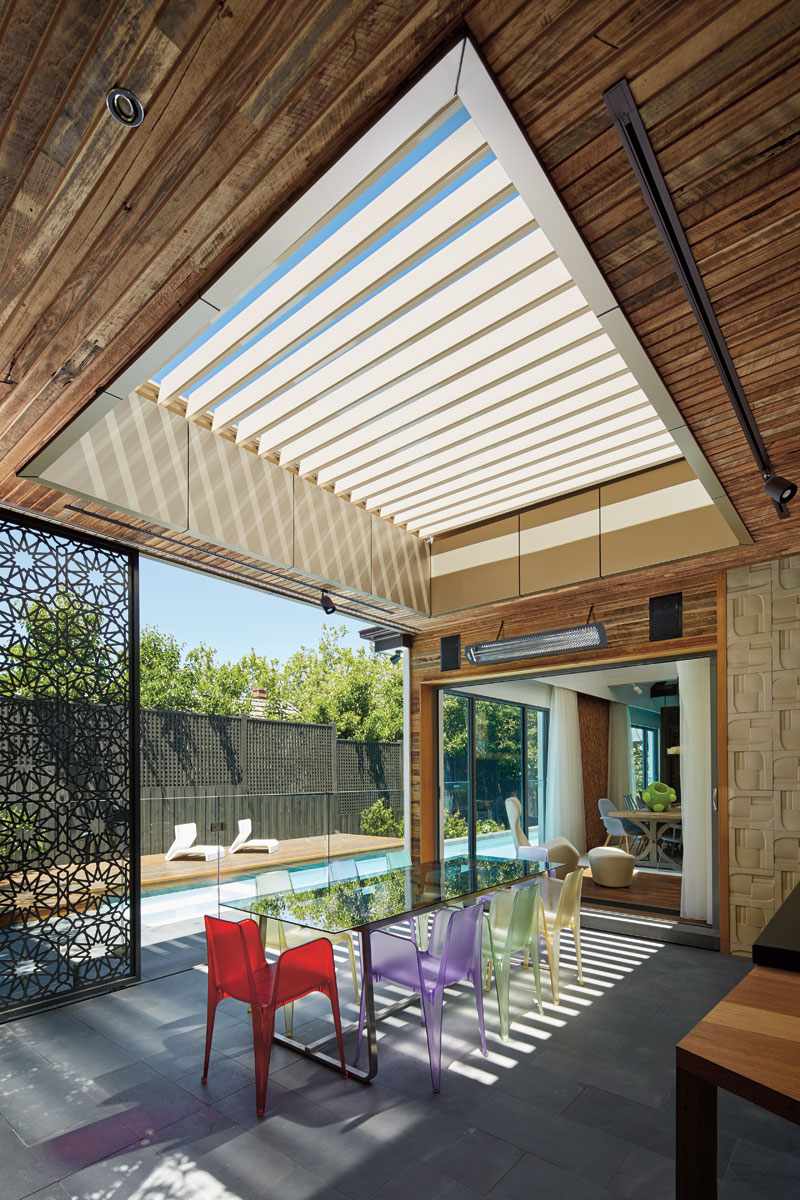

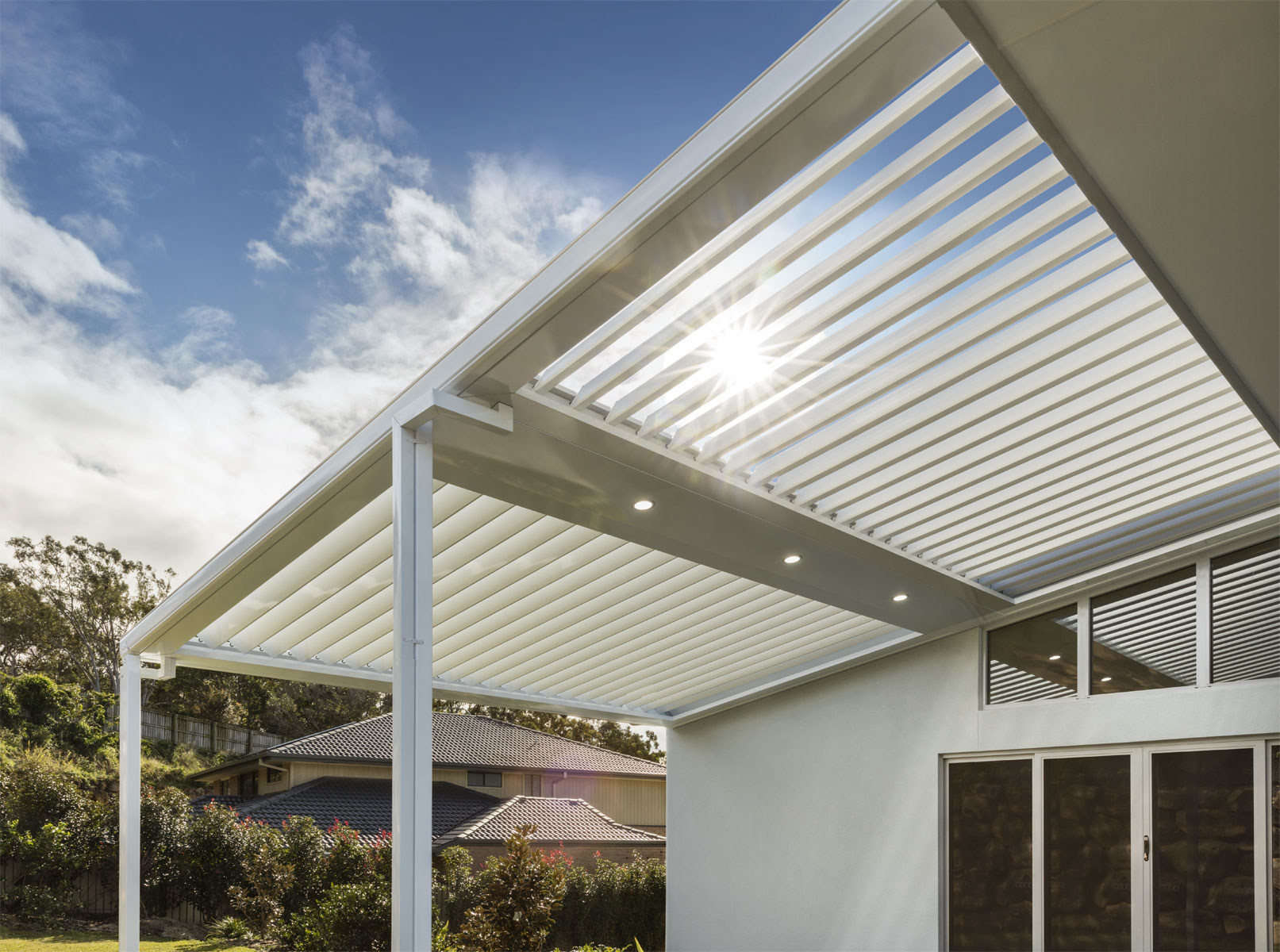

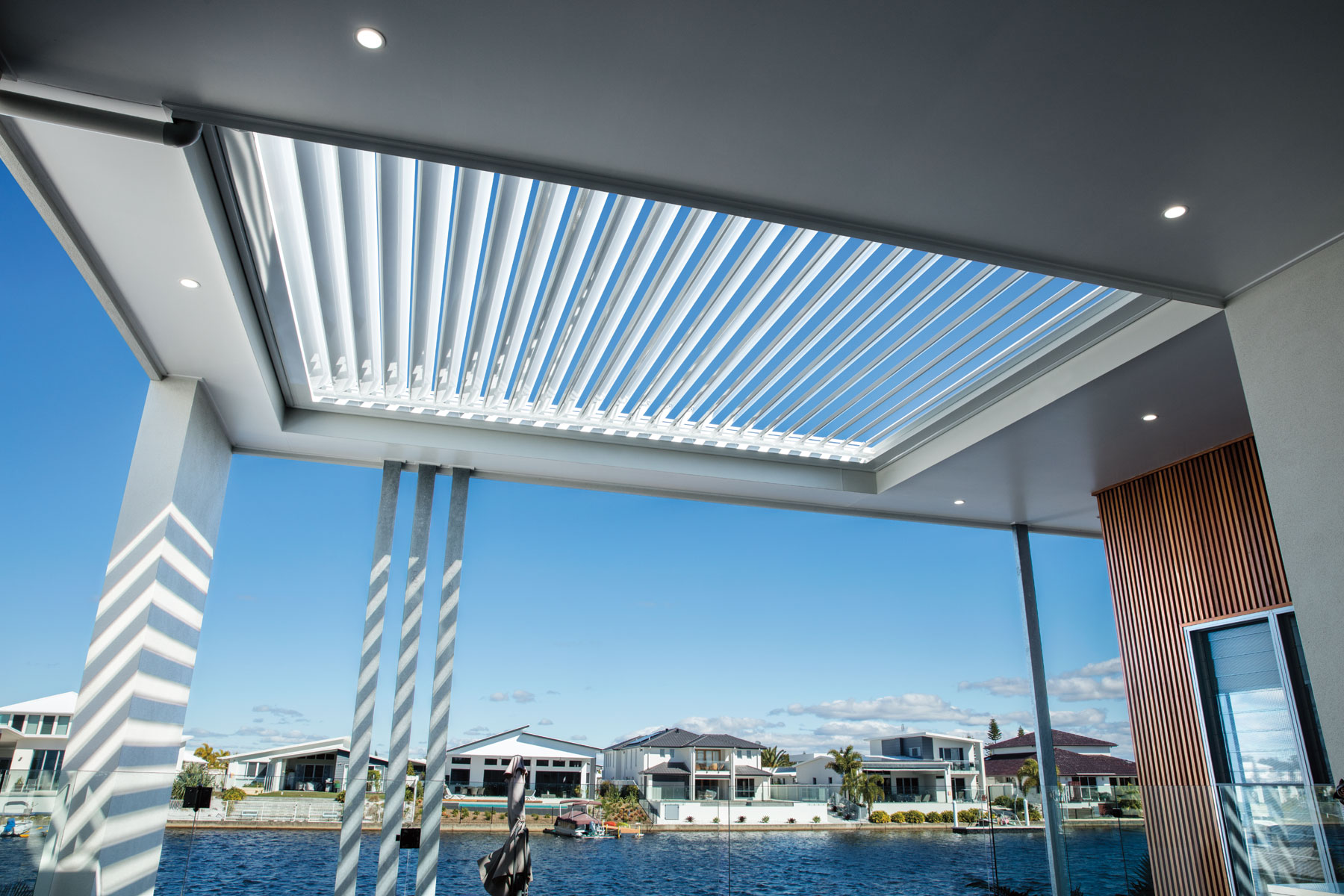

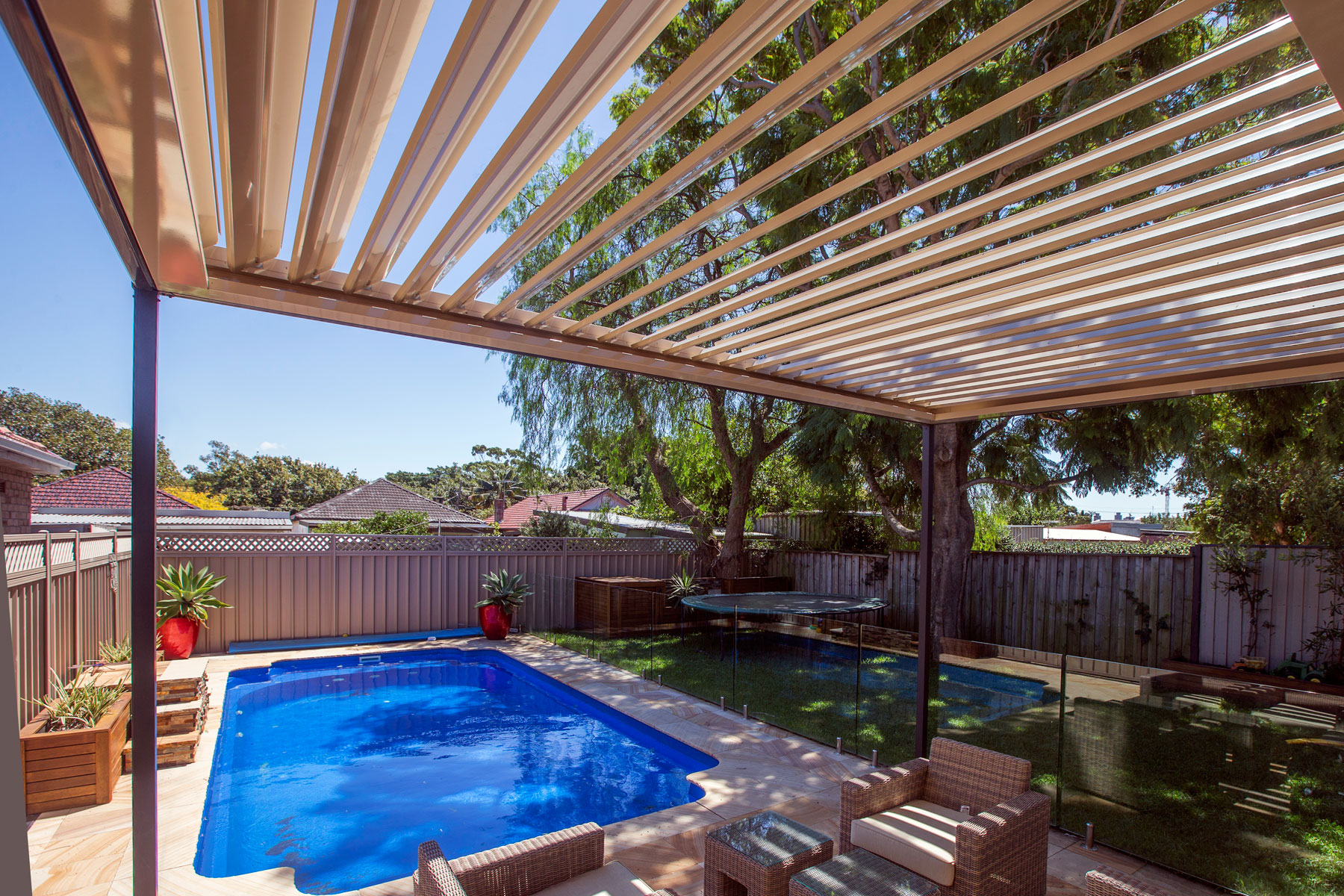

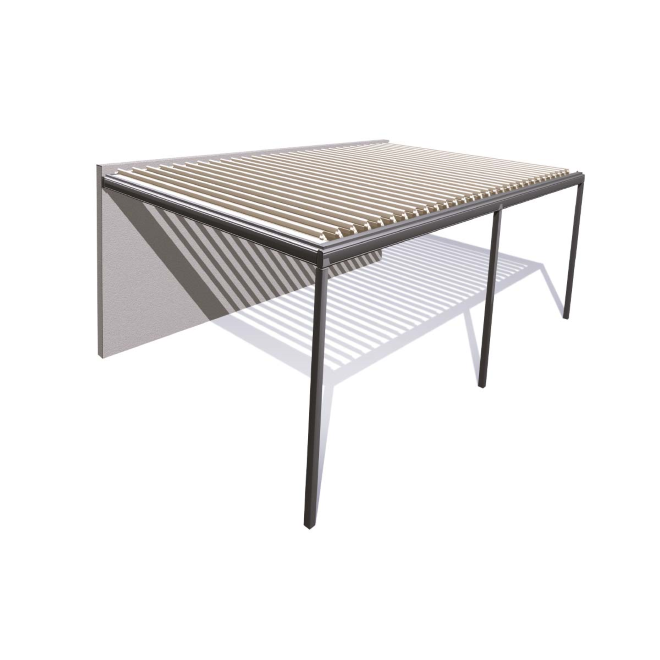

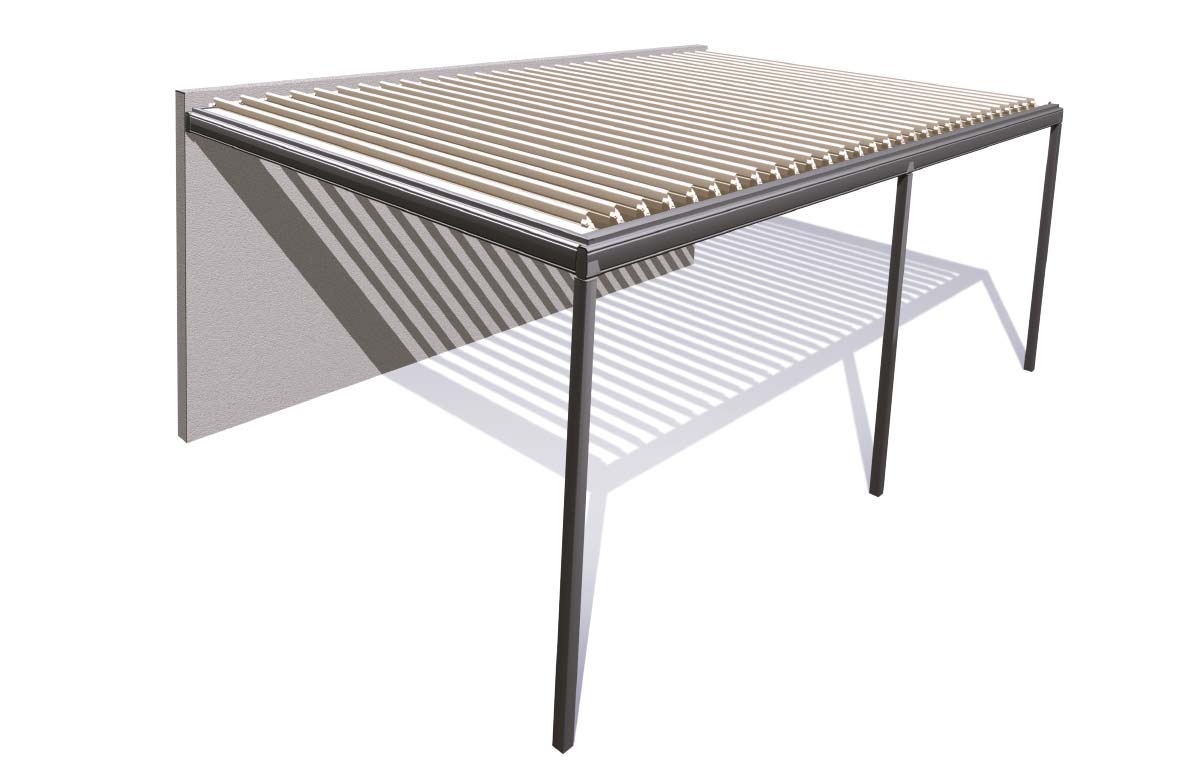

Take control of the weather with the innovative Stratco Outback Sunroof opening louvre roof verandah. Open and close the electronically controlled louvres to your desired position. Let the sunlight in when the weather is fine. Provide protection when the clouds set in.

Outback® Sunroof Verandah

Control at your fingertips for the best of your weather

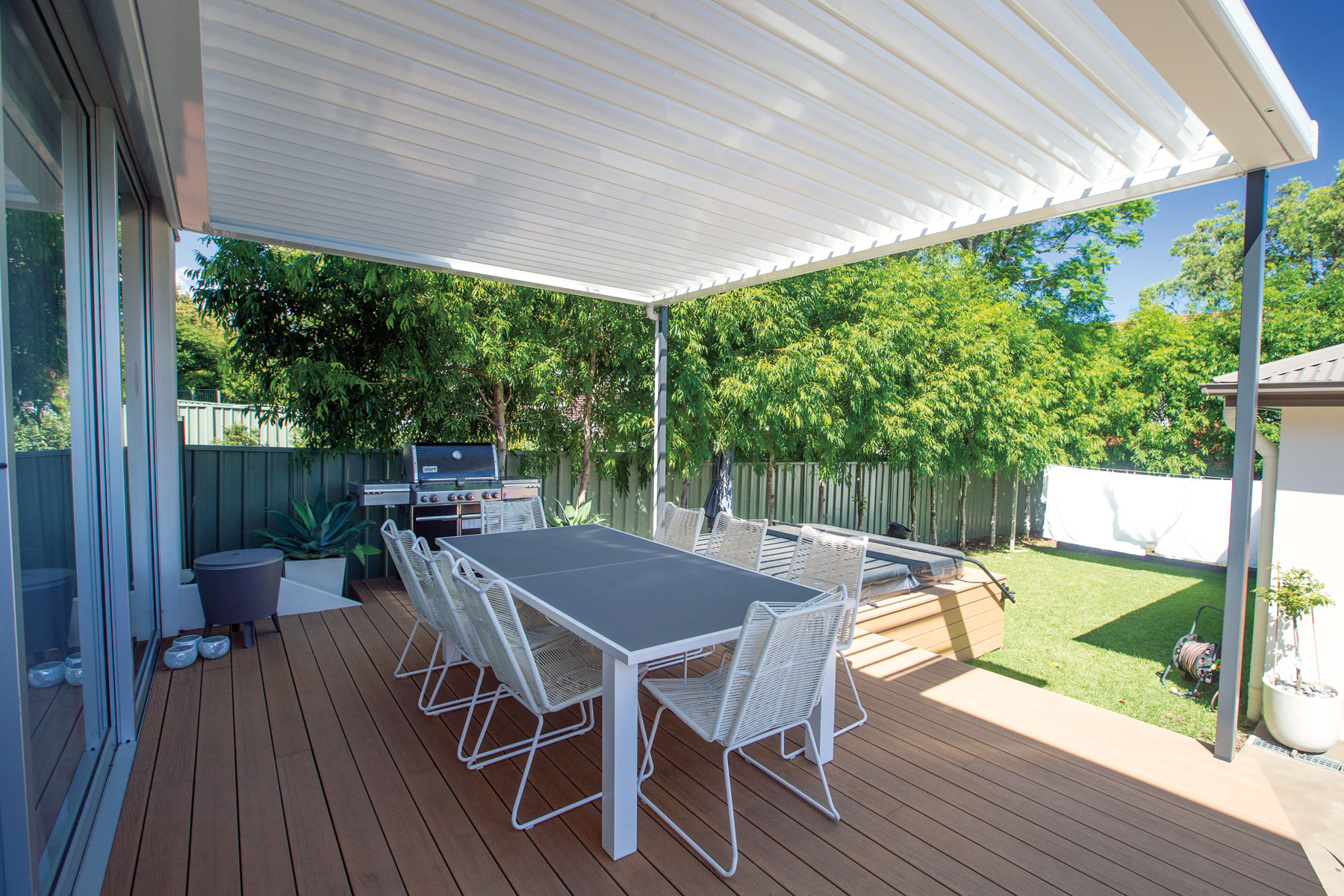

Control your outdoor living weather with the innovative Stratco Outback Sunroof opening roof pergola. Its electronically controlled louvres can be opened and closed to your desired position. Let the breeze and sunlight in when the weather is fine, and provide protection when the clouds set in.

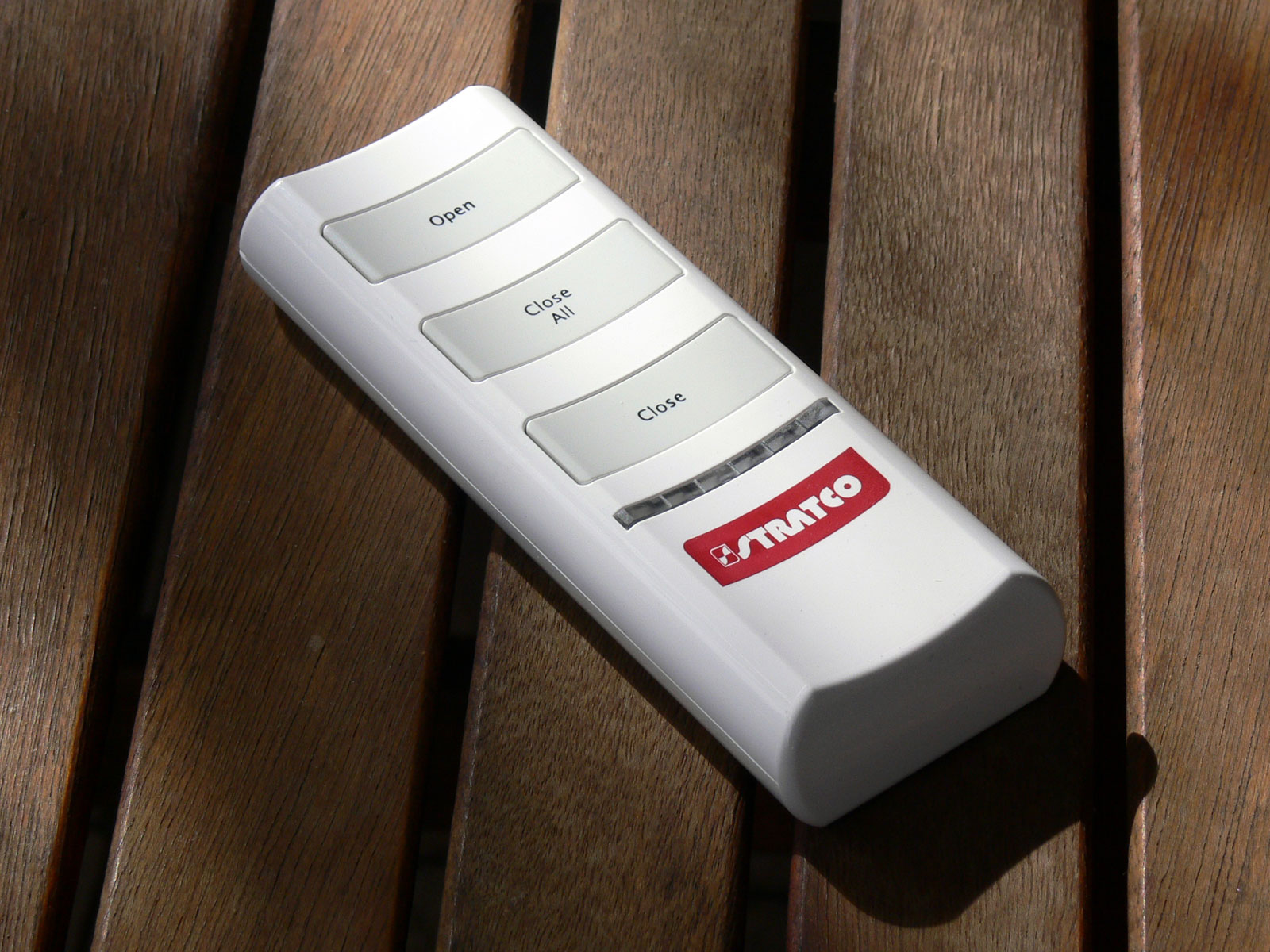

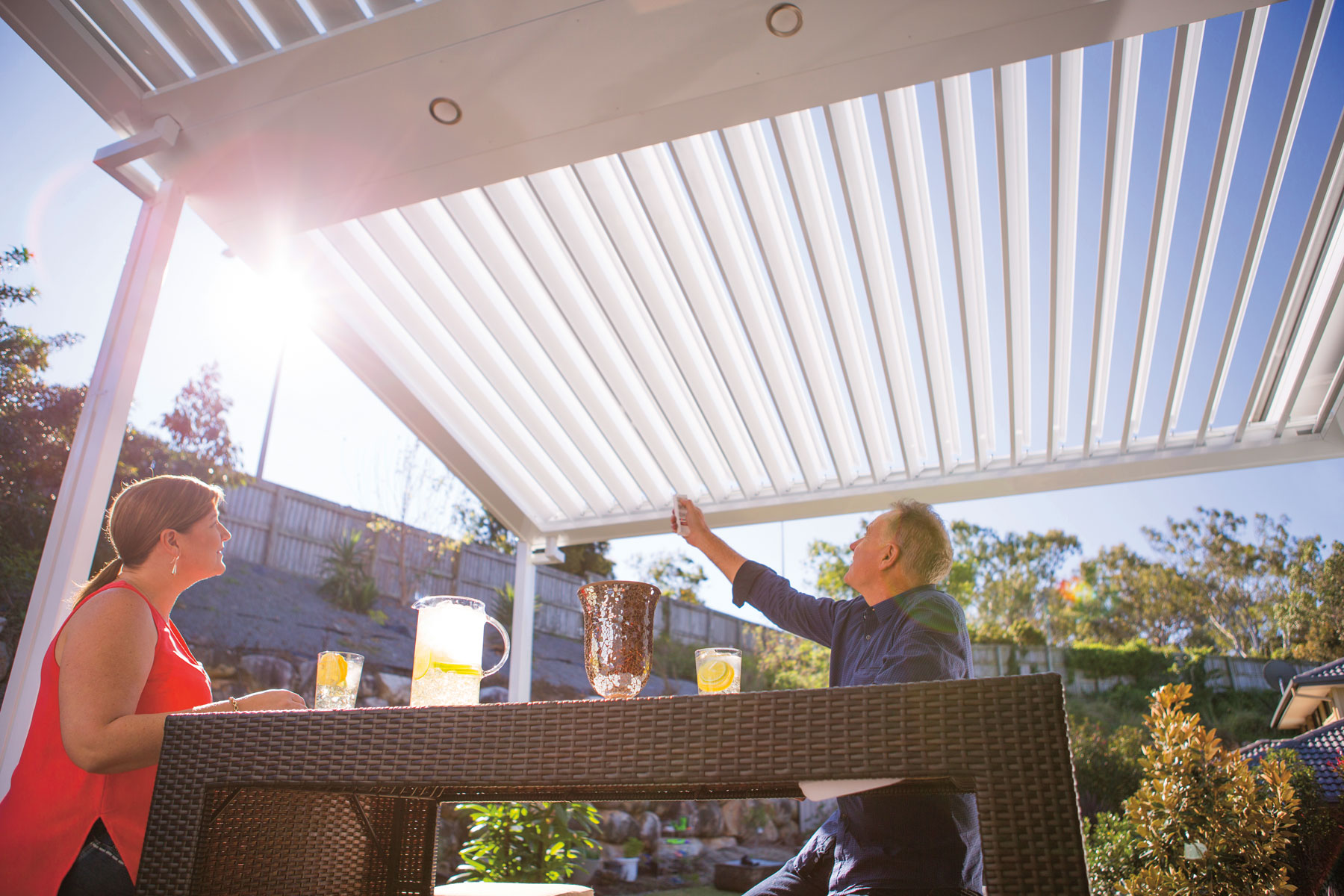

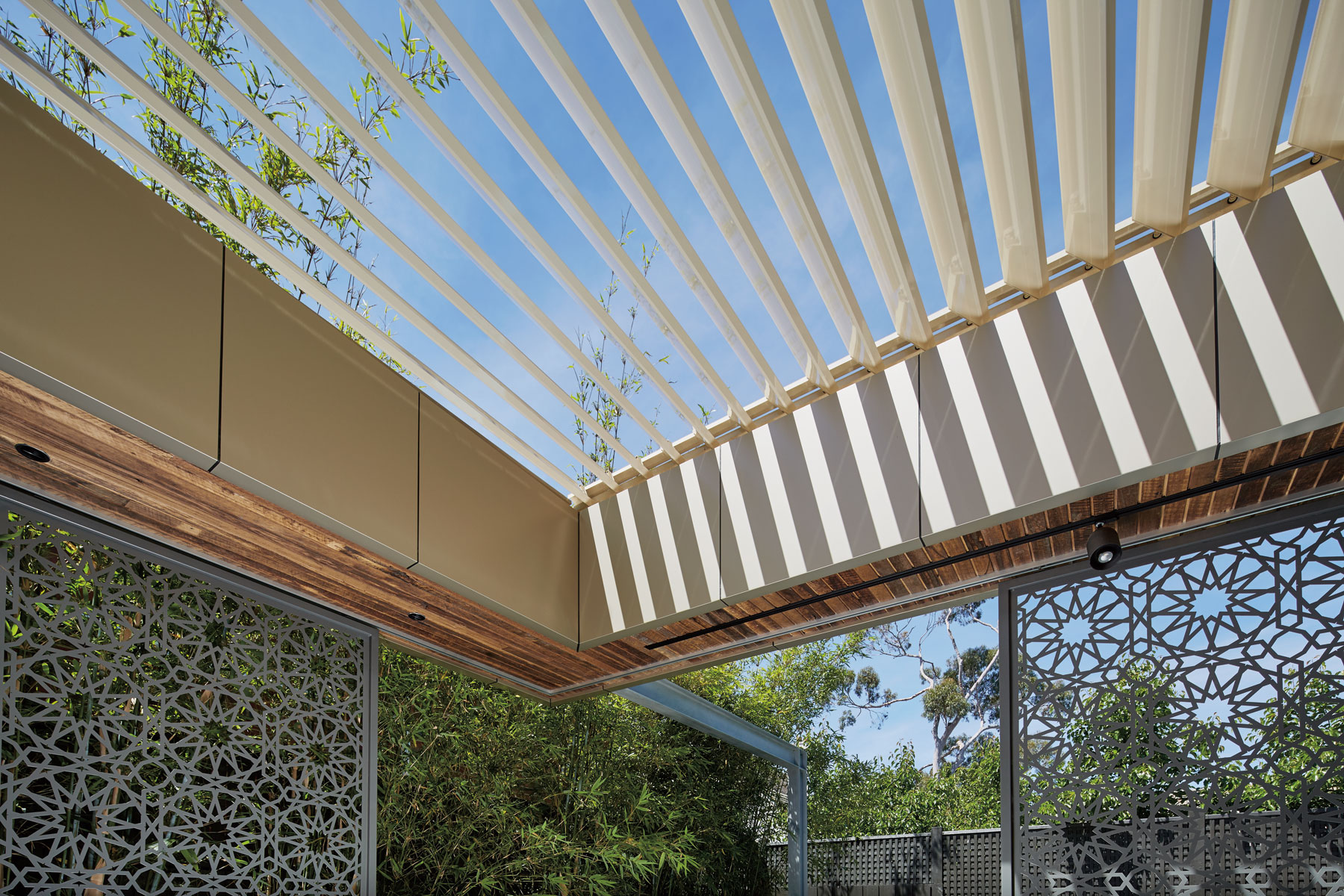

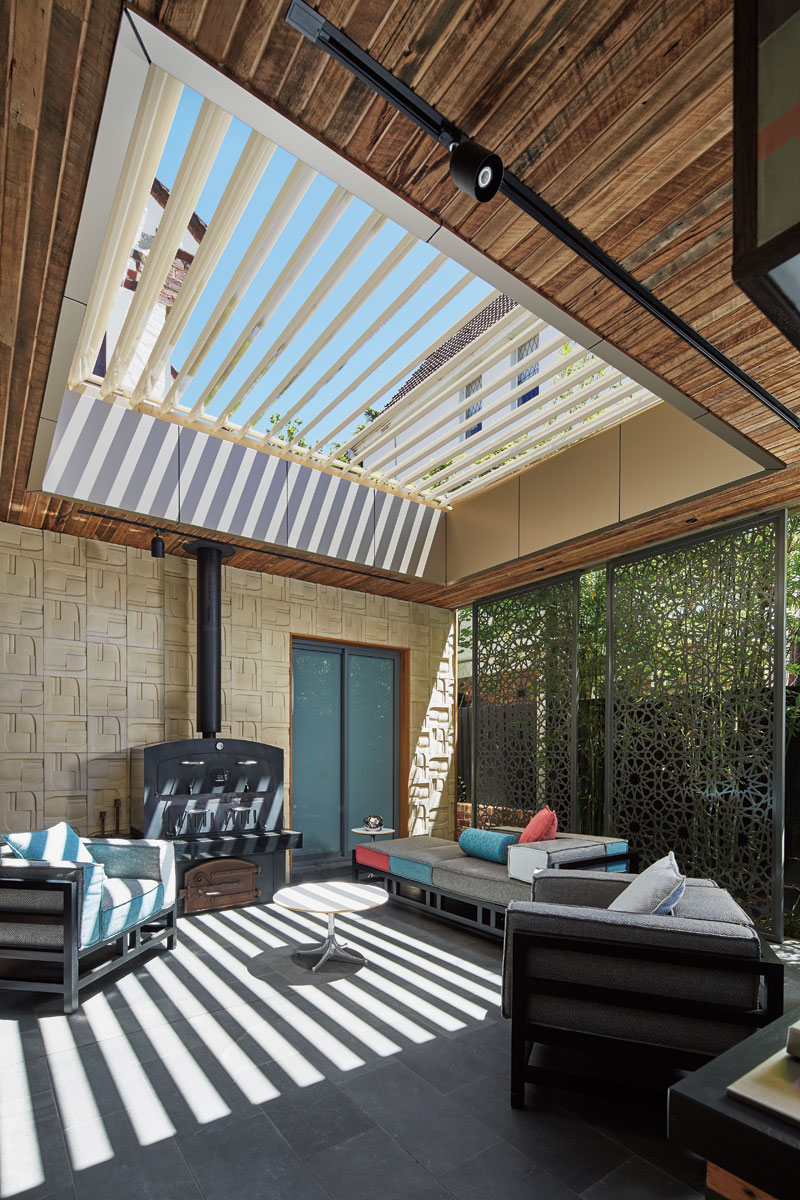

By adjusting the rotating louvres with the hand held remote, you can easily control the level of sunlight, shade and weather shielding. The system has an inbuilt rain sensor that will automatically close the blades if rain is detected. When the louvres are completely shut they form a beautiful ceiling-like interlocking profile that protects you from the weather.

Gives you effortless control of the breeze and sunlight in fine weather, and excellent protection when the weather turns.

Convenient Control

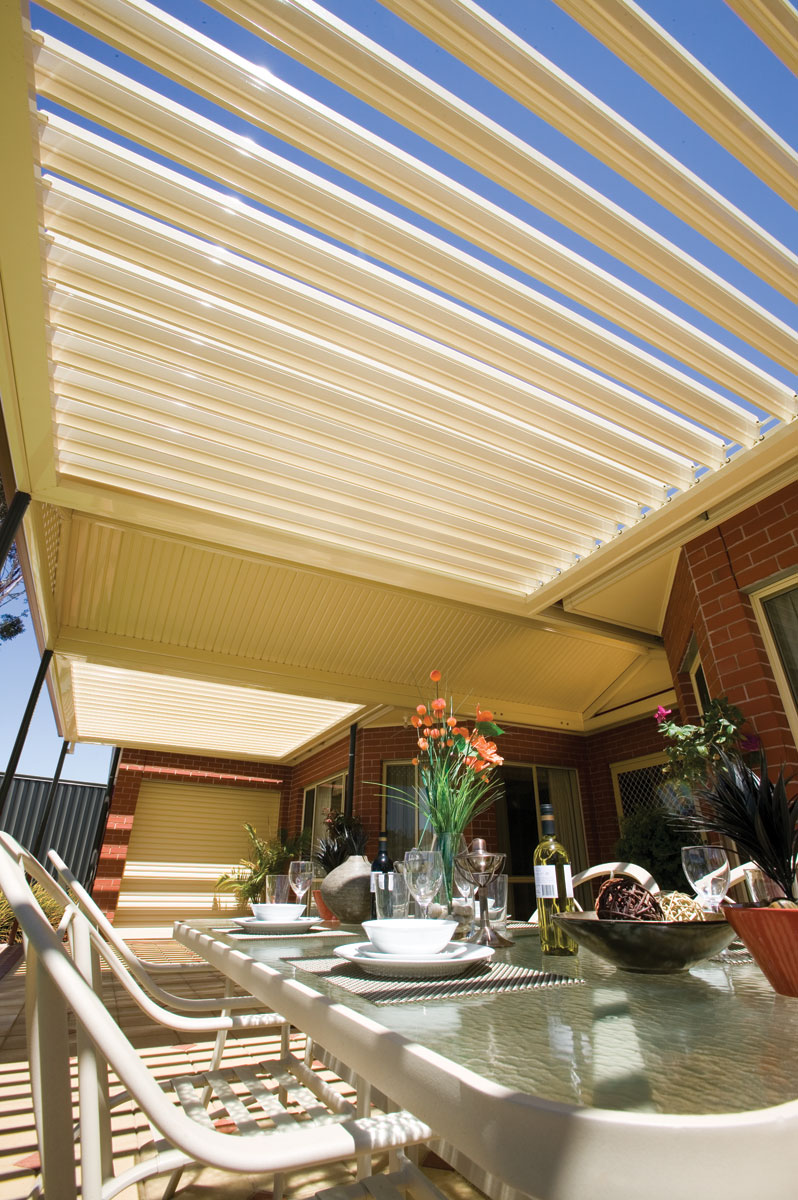

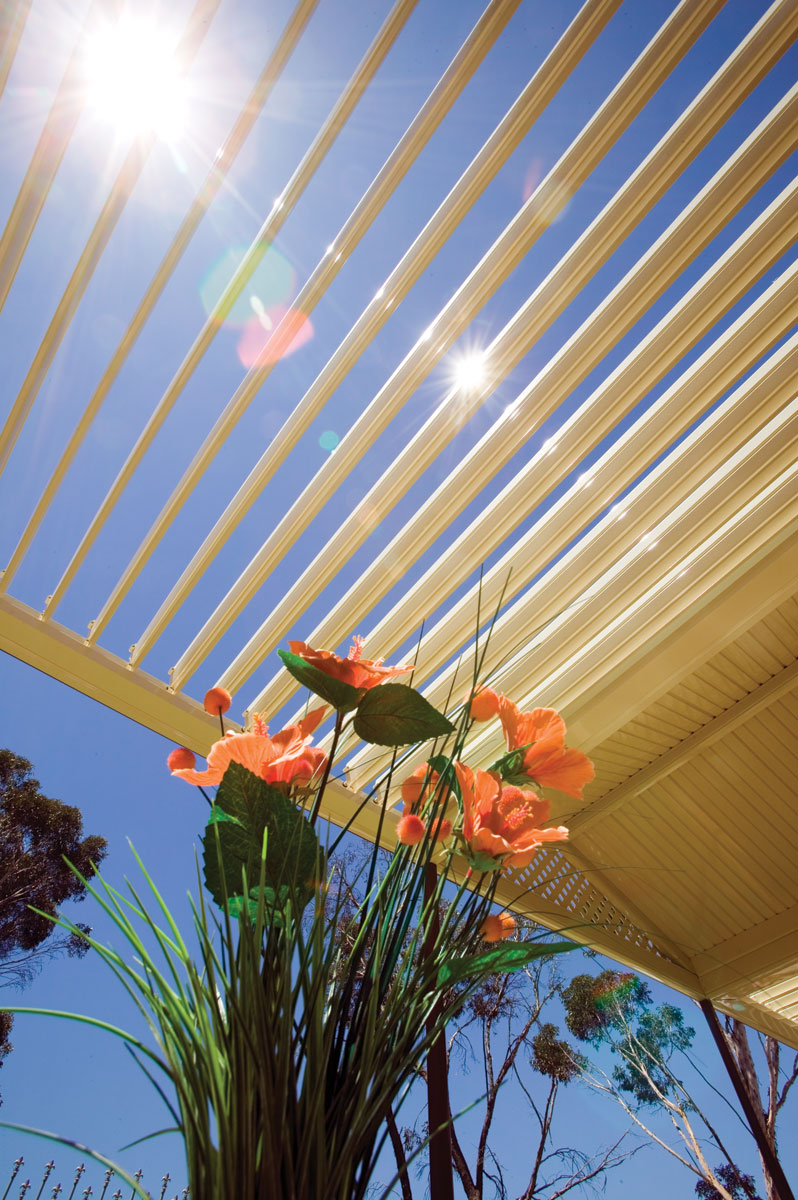

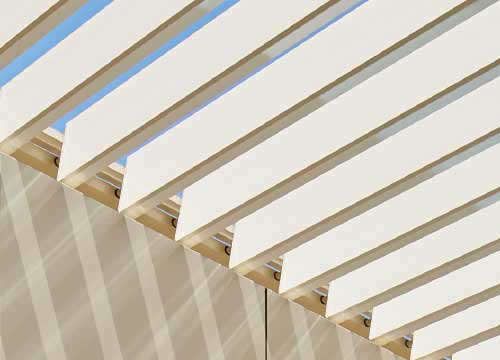

Control the level of sunlight, shade and weather shielding by adjusting the rotating louvre blades with the hand held remote. The louvres can be rotated to the fully open position to allow for complete overhead sun, or partially open to provide shade and protection with good ventilation. The opening direction of the louvres can be aligned in any one of four directions during installation to optimise light and ventilation control.

Patios Verandah Outback Sunroof Louvre Position

Automated Intelligence

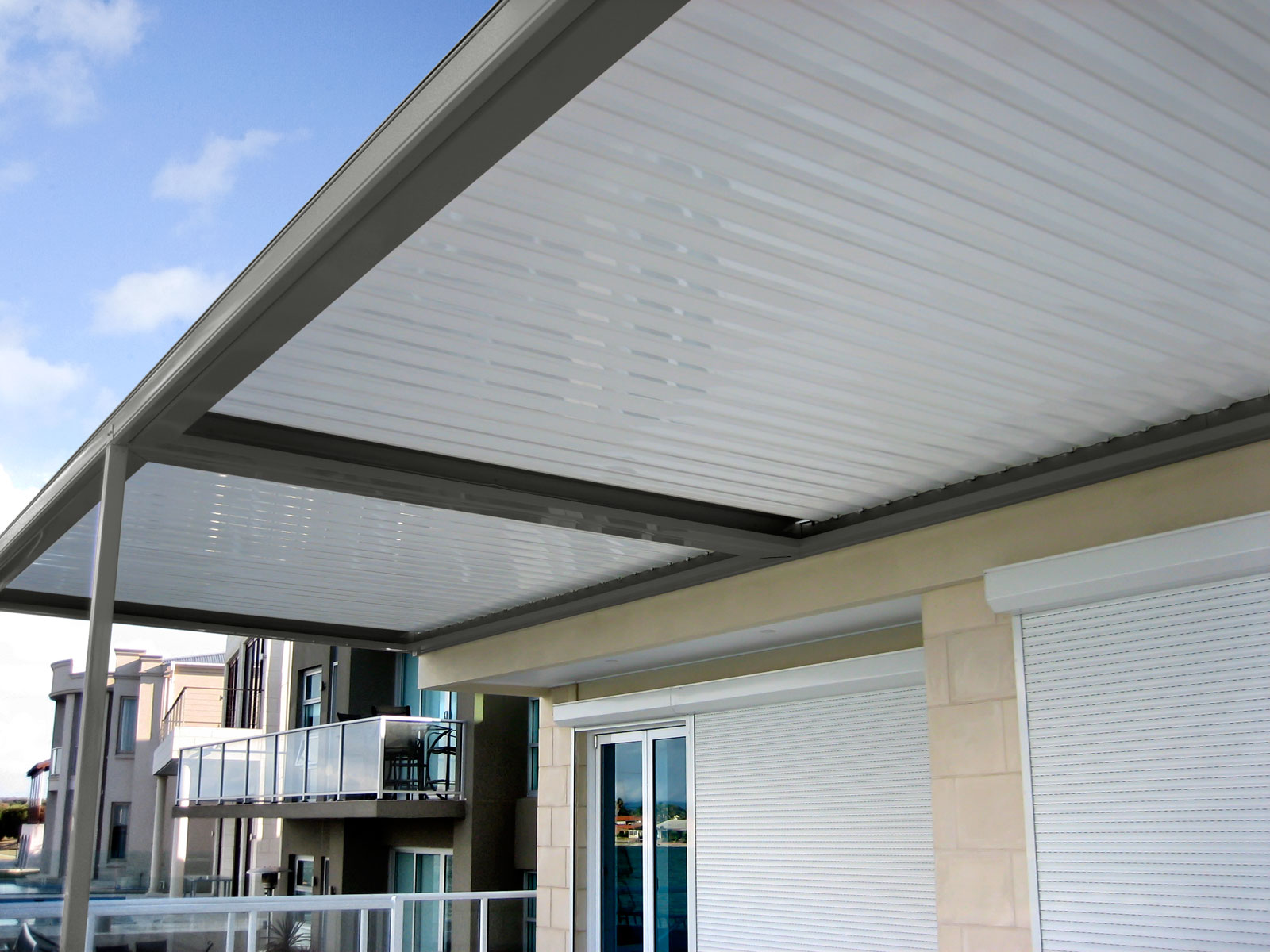

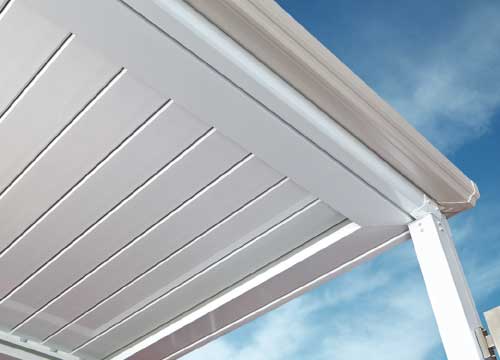

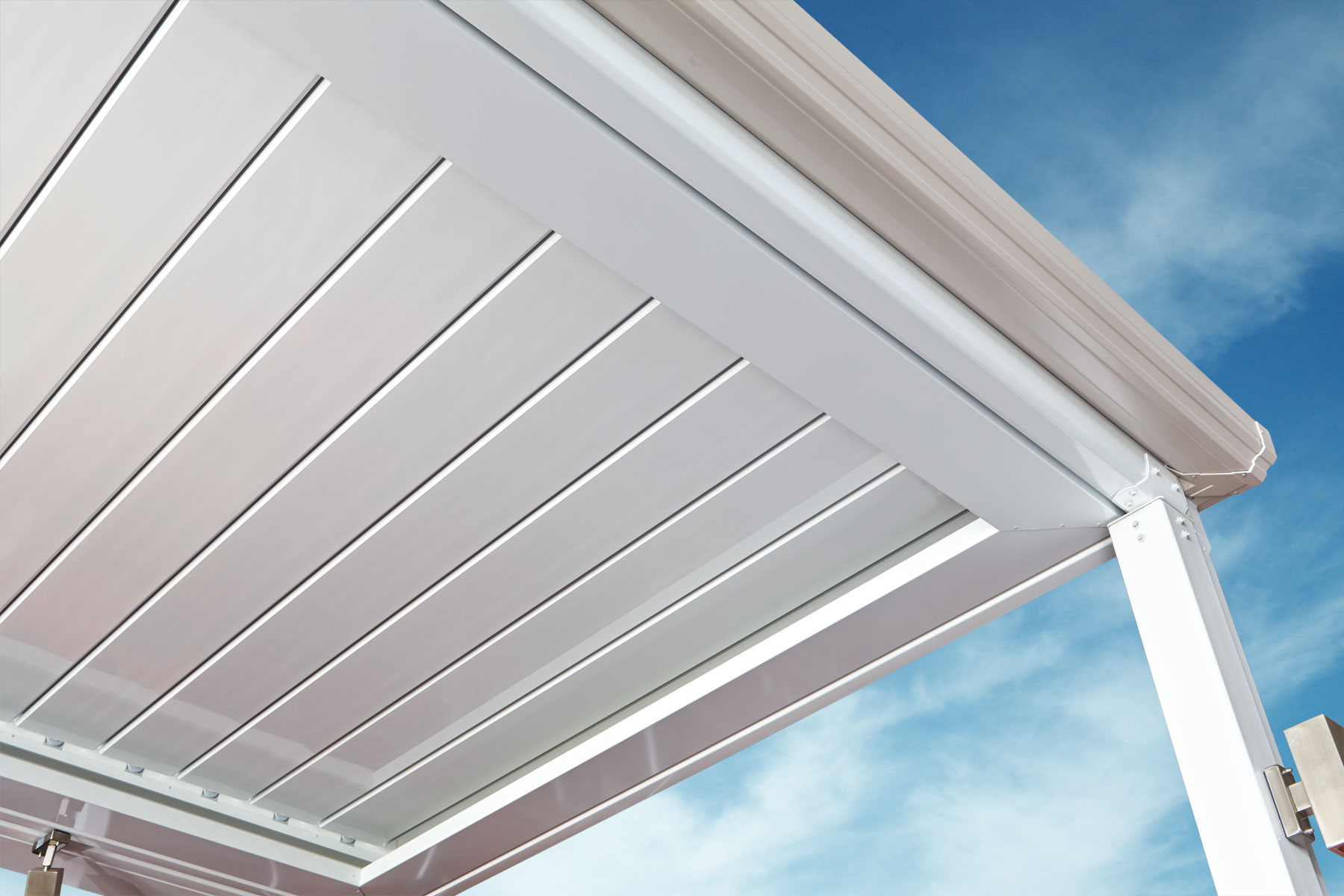

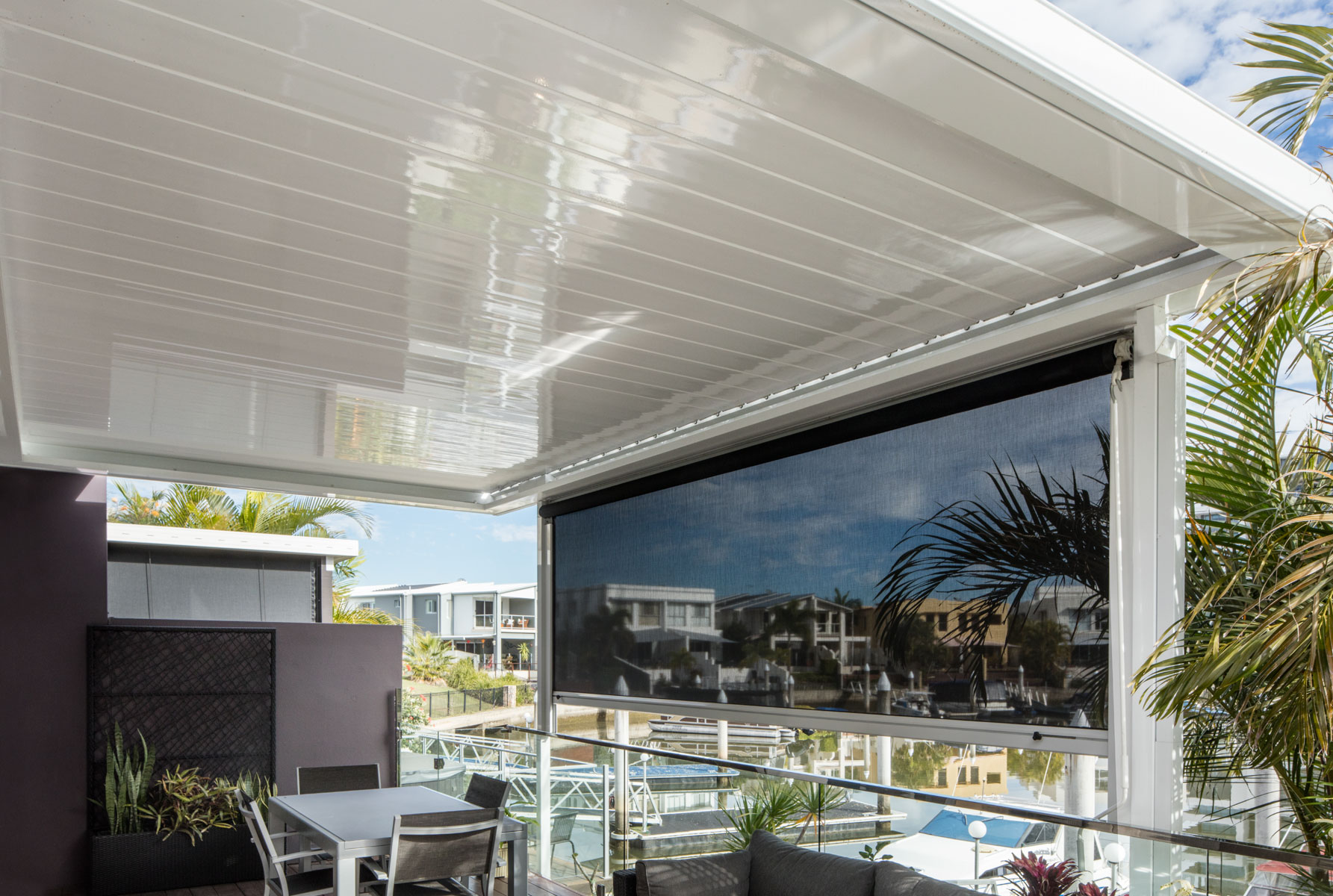

Rain is detected by a rain sensor that automatically closes the louvers. When the louvres are in the closed position, they form an interlocking profile that provides protection from the weather.

Superior Design

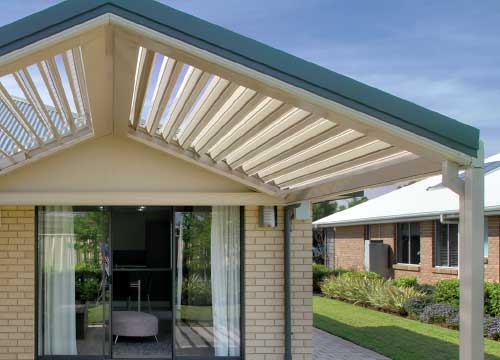

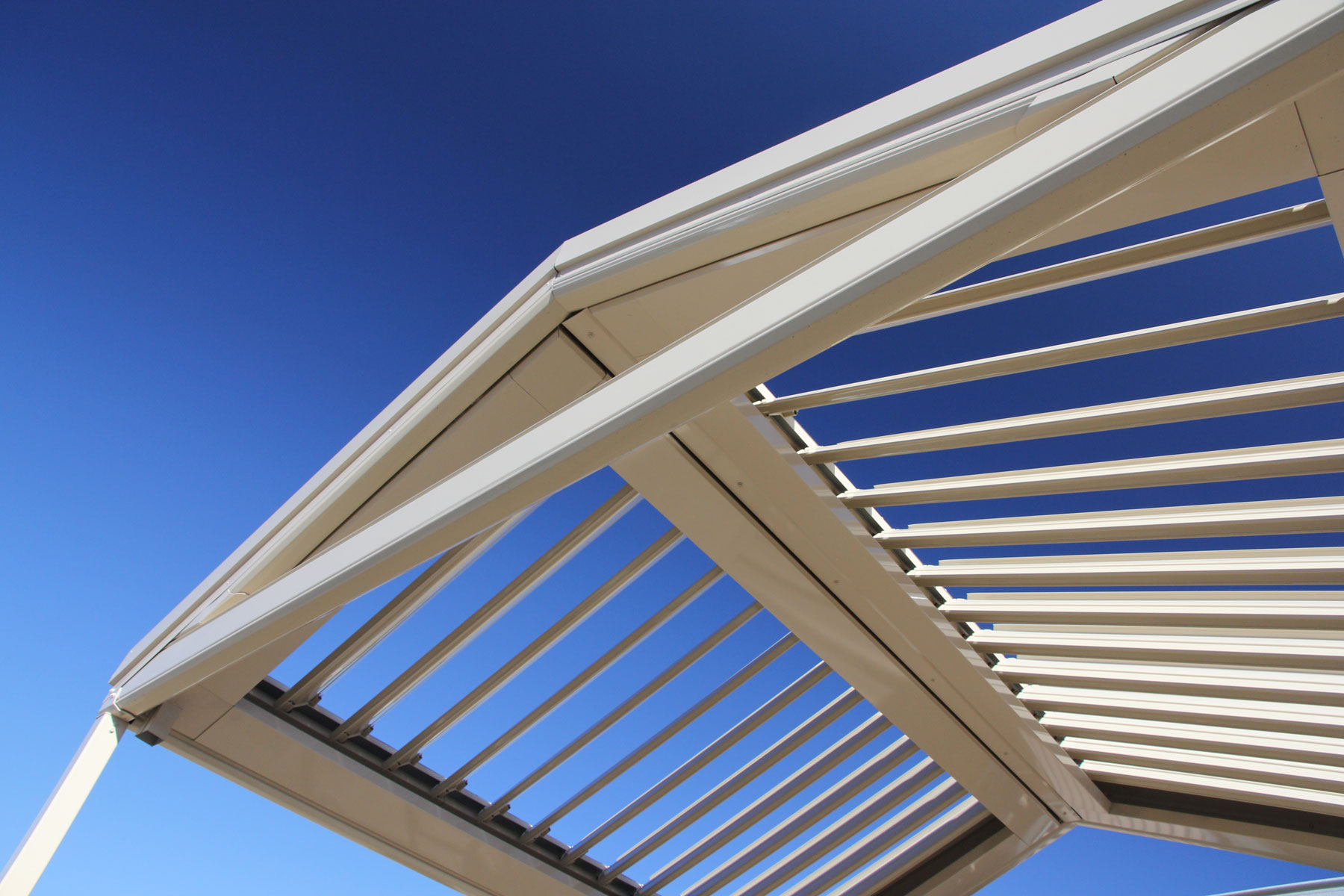

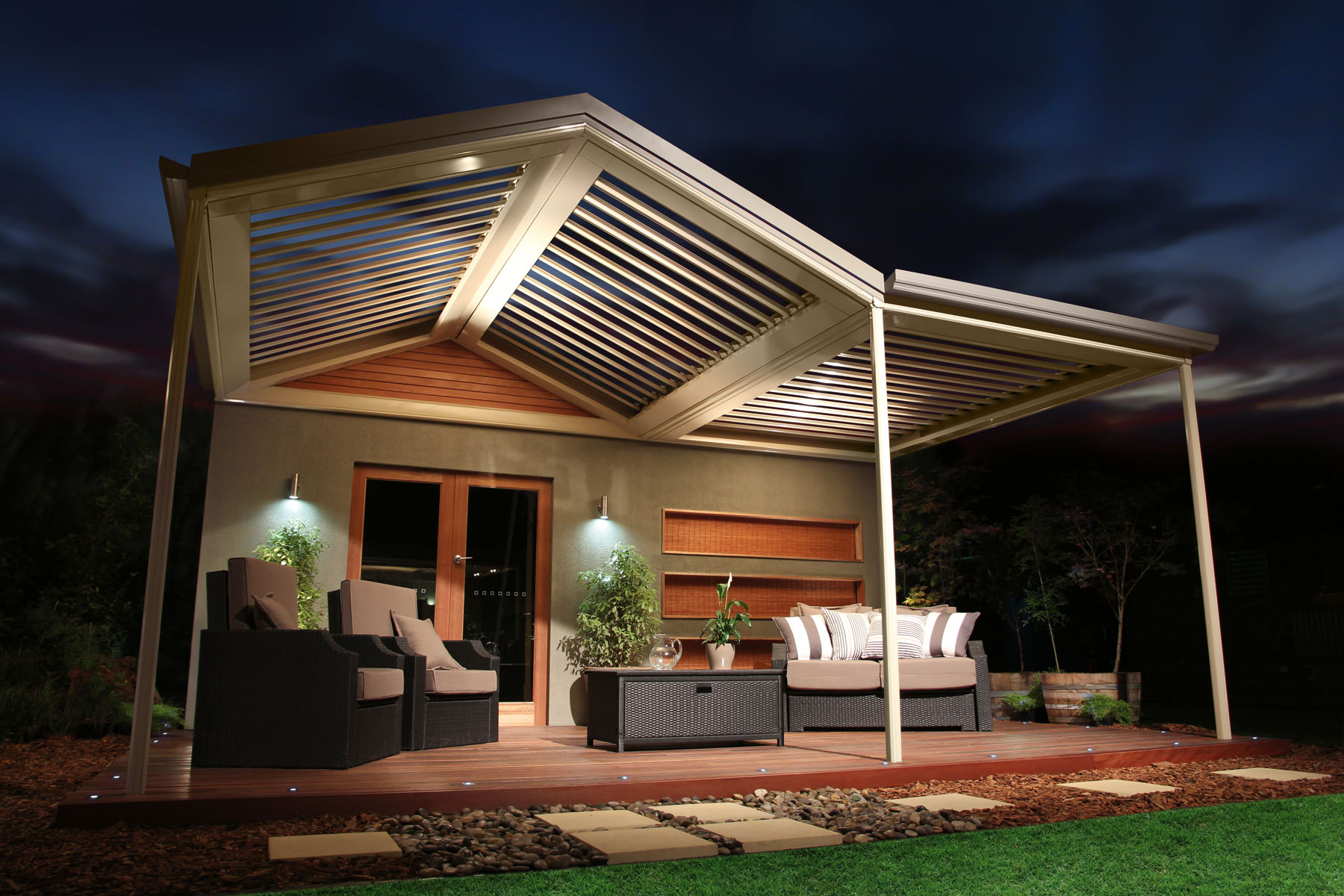

The Stratco Outback Sunroof is available in a flat and gable design. It can span up to 3.9 metres for flat, and 7.2 metres for gable designs thanks to its strong, well-engineered blades. The powder coated aluminium blades have an inbuilt weather strip to reduce noise and form a tight seal. The moving parts use specially designed bushes for whisper quiet performance, and the blades are driven by a powerful 24 volt DC linear actuator for reliable long life operation.

Installation

Attention to detail ensures the Stratco Sunroof installation proceeds smoothly:

  • The louvre blades come pre-assembled with a foam core and end caps.
  • The mounting extrusions that house them have laser cut holes for the louvres to fit easily into the framework.
  • The tracks are pre-mitred and cut to length to reduce the overall installation time.
  • The system clips and fastens together with specially designed, snap-fitted components.

Do it yourself or have it installed by an Authorised Dealer.

Contact your nearest Stratco or Authorised Stratco Dealer and let us show you the difference a Stratco Verandah living solution can make to your home and lifestyle!

Patios Verandah Carport Outback Sunroof Page

Specifications

Maximum Allowable Lourve Spans (mm)
  Low Medium High Very High
Attached One Side 3900 3900 3900 3600
Corner Attached 3900 3900 3600 3300
Freestanding 3900 3900 3900 3900

Values shown are for the outside of the Sunroof perimeter beams.

Note: The above table specifies the maximum allowable louvre spans which are not to be exceeded. For type 4 units with rotated blades the beam spacing for the appropriate closed section must be within these spans for the appropriate attachment style.

Maximum Spans (S) (mm) - Attached
  Type 1A Type 3A Type 4A
150 Beam 150 Beam 150 Beam
Wind Speed Attached
One Side
Corner
Attached
Attached
One Side
Corner
Attached
Attached
One Side
Corner
Attached
Low 3900 3900 6600 6600 6600 6600
Medium 3900 3900 6600 6600 6600 6600
High 3900 3600 6600 6600 6600 6600
Very High 3600 3300 6600 5400 6600* 6000

* Maximum height to the top of beam is limited to 2700mm.

Maximum Spans (S) (mm) - Freestanding
  Type 1F Type 3F Type 4F
Wind Speed 150 Beam 150 Beam 150 Beam
Low 3900 6600 7200
Medium 3900 6600 7200
High 3900 6600 7200
Very High 3900 6600 7200

Connection Details

Patios Verandah Carport Outback Sunroof Connection

Components

  1. Louvre
  2. 150 Verandah Beam
  3. Internal Box Gutter
  4. Link Rod
  5. Link Pin
  6. Mounting Bush
  7. Column
  8. Mounting Extrusion
  9. Motor
  10. Motor Bracket
  11. Motor Flashing
  12. Beam End Cap
  13. Post Cap
  14. Notched Beam Filler
  15. Beam to Beam Bracket
  16. Post Bracket
  17. Motor Louvre Flashing
  18. Gutter Side Mounting Extrusion

Structural Sections

Patios Verandah Carport Outback Component Beam

150mm Beam

Patios Verandah Carport Outback Component Post

Post | Purlin

Design Considerations

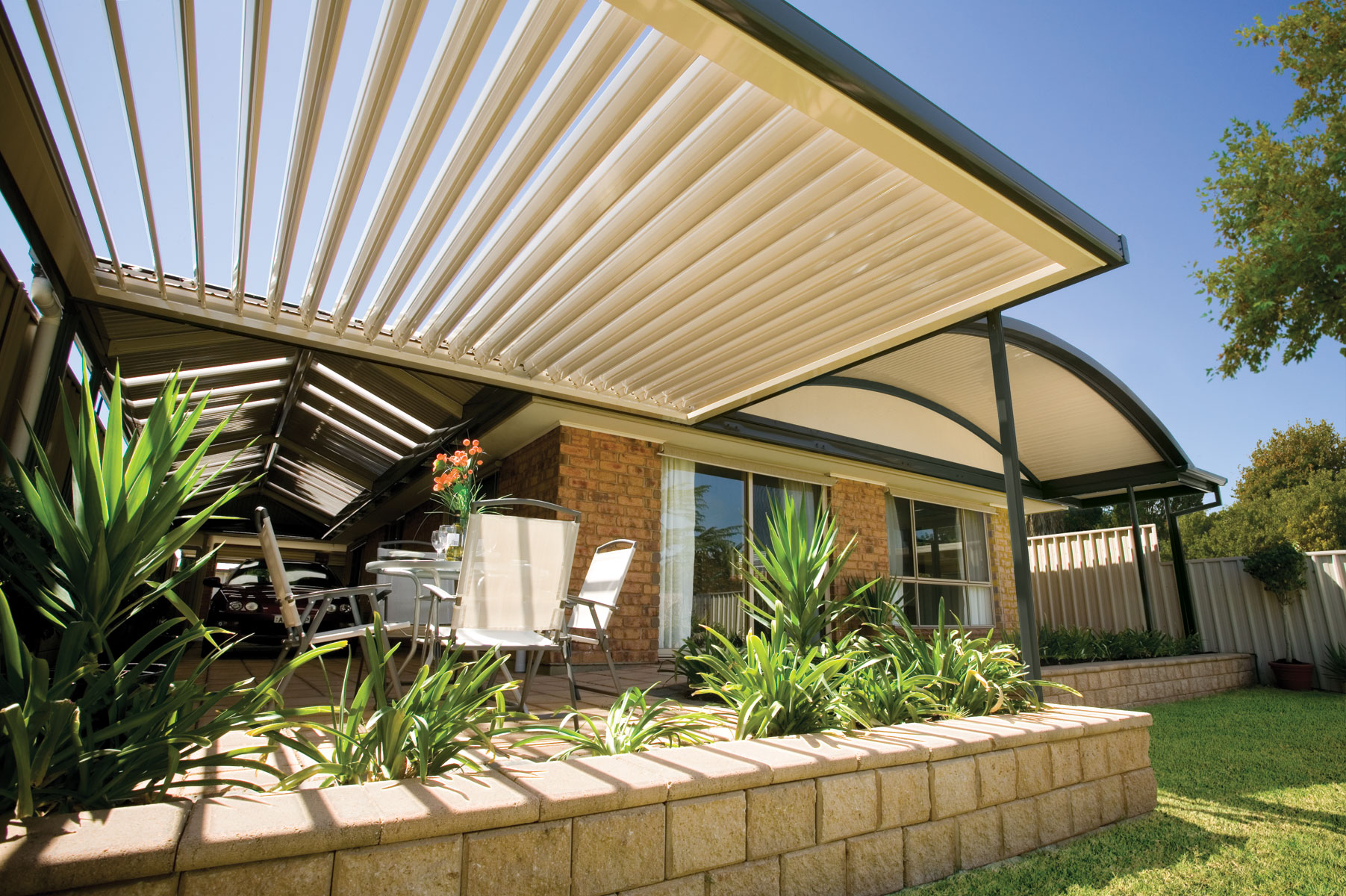

Gable or curved units attached between a Sunroof unit and an existing structure

Gable or curved units which are attached between a Sunroof unit (excluding pergolas) and an existing house, are only be considered attached if the gable or curved unit is attached to the existing house (C) for its full length (L) and the longest side of the combined unit (B) does not exceed twice the gable or curved unit length (L). The Sunroof unit in this case is considered attached. This style requires all coloumns to be embedded into footings.

Patios Verandah Carport Outback Sunroof Configuration

The unit is considered attached if:  B = 2 L or less, and C = L

Gable or curved units attached to a Sunroof unit on one or both sides

Gable or curved units which are attached on one or both sides to Sunroof units, (excluding pergolas) must be attached to a house for at least 75% of the gable or curved opening length (O) to be considered attached. Sunroof units must be deemed attached as detailed in the Sunroof unit section below for the gable or curved unit to be considered attached.

Patios Verandah Carport Outback Sunroof Configuration

The gable | curved unit is considered attached if:  C = 0.75 of O or more

Gable or curved units are considered attached on both sides if both the Sunroof unit 1 and 2 comply with the attachment rules for Sunroof units as detailed below. Gable or curved units are considered attached on one side if only one Sunroof unit exists and it complies with the attachment rules for Sunroof units as detailed below.

Sunroof units

A patio or carport is deemed to be freestanding unless it is attached to an existing house (C) for at least 75% of the length of its shortest side (A), and its longest side (B) does not exceed twice the length of its shortest side.

Patios Verandah Carport Outback Sunroof Configuration

The unit is considered attached if:  B = 2 A or less, and C = 0.75 A or more

Design Options

When designing a Stratco Verandah, consideration should be given to both the roof sheet direction, and the orientation of any openings and overhangs involved. These are often determined by appearence and drainage requirements. Some of the normal configurations are shown below. Contact Stratco if assistance is required.



Attached to a Sunroof unit on one side and a wall or fascia on one end.

Patios Verandah Carport Outback Sunroof Configuration

Attached both sides to the Sunroof unit and the wall or fascia on the opposite side.

Patios Verandah Carport Outback Sunroof Configuration

Attached to the Sunroof unit on both sides and the wall or fascia on one end.

Patios Verandah Carport Outback Sunroof Configuration
