Rainheads

Stratco

SKU: Rainheads

Quality rainheads. Stratco can manufacture any custom rainhead to your design, or choose from a wide selection of standard styles. Pick from a range of materials including zinc/al, pre-painted steel or stainless steel.

High Quality Rainheads

Add the finishing touch with stylish, well-crafted rainheads

Rainheads are an essential design element for buildings where internal box or trough gutters are used. A rainhead or sump is a container located between the gutter and downpipe that aids the flow of water away from the roof. It acts as an external overflow point to reduce water surges into the stormwater system and aid the flow of water down the downpipes. Because railheads are positioned outside, they minimise the risk of water overflow inside a building. The addition of an overflow provision provides even greater protection against water overflow in extreme conditions.

Available Colours:

Rainhead Styles

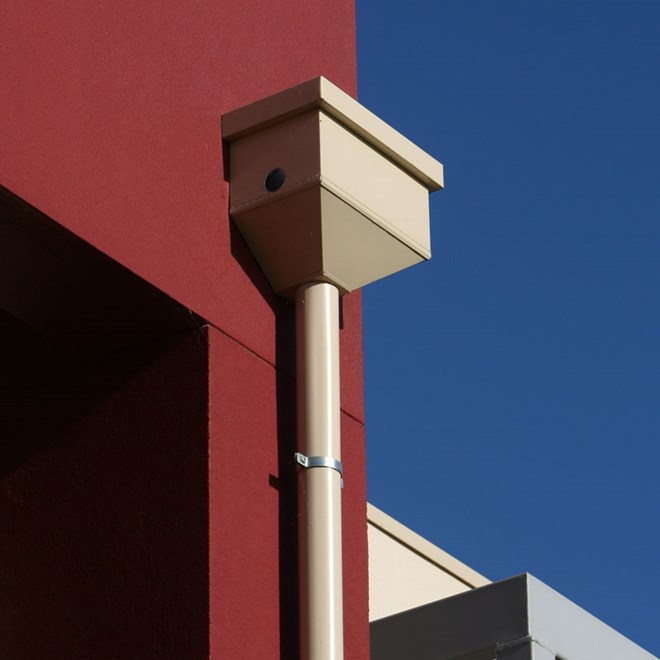

Box Rainheads

Box rainheads have sharp lines that form bold shapes. With a range of square, splayed or tapered designs to choose from, their style is simple and practical. Box rainheads will complement any form of architecture, but they work particularly well on small commercial buildings or on structures with rendered brickwork.

Rainheads Rainhead Box Flat Bottom

Flat Bottom

Rainheads Rainhead Box Splayed

Splayed

Rainheads Rainhead Box Triangular

Triangular

Rainheads Rainhead Box Diamond

Diamond

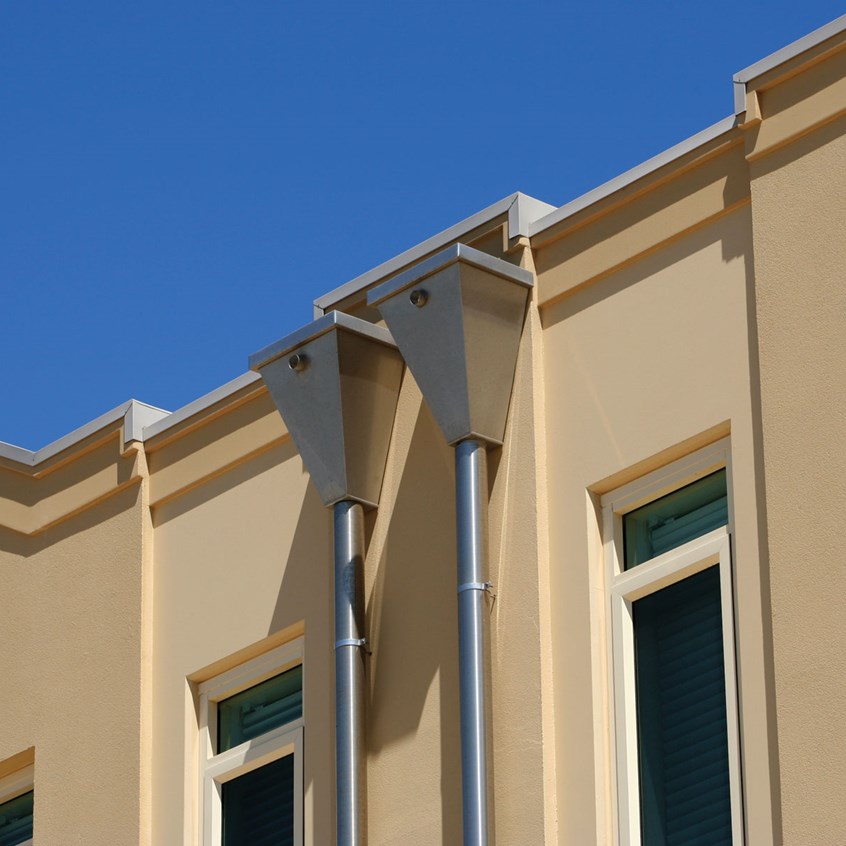

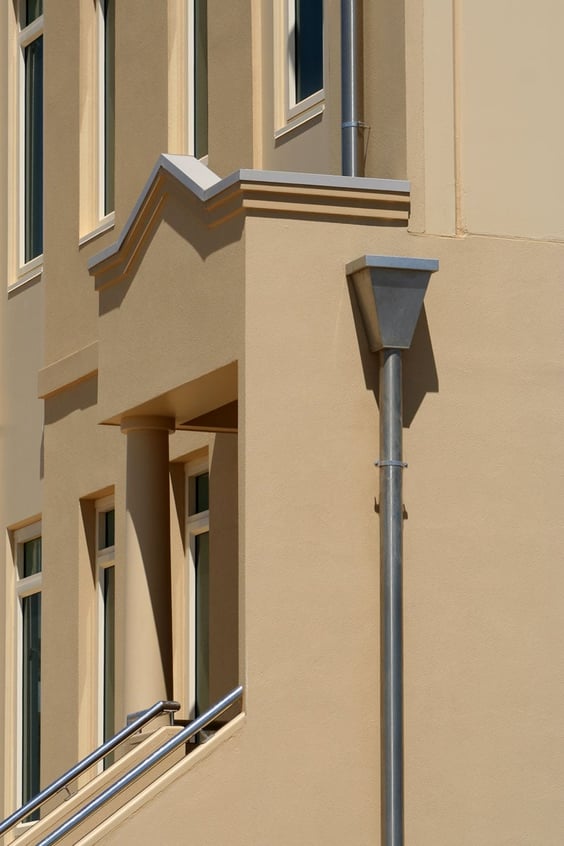

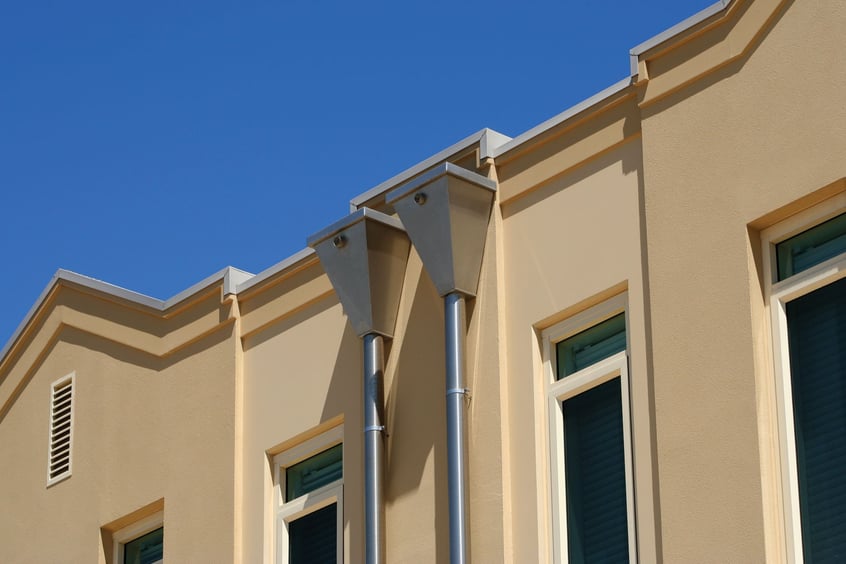

Tapered Rainheads

Tapered rainheads are popular in industrial applications due to their strength and resilience. Their tapered bottom assists in the natural rotation of the entering water, therefore increasing the efficiency of the rainhead. The bead around the top of the design helps to strengthen the rainhead and protect it from damage during maintenance.

Rainheads Rainhead Tapered

Tapered

Rainheads Rainhead Tapered Custom Tapered

Custom Tapered

Rainheads Rainhead Tapered Low Profile

Low Profile

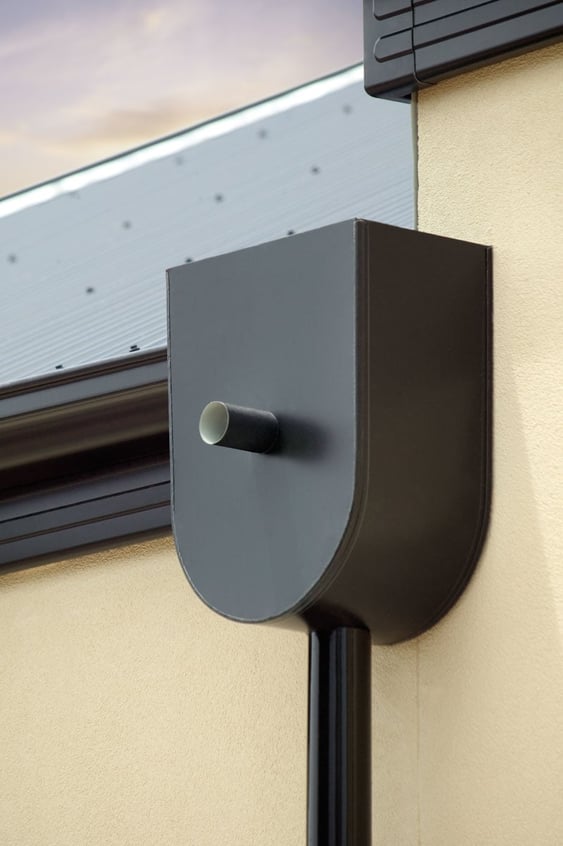

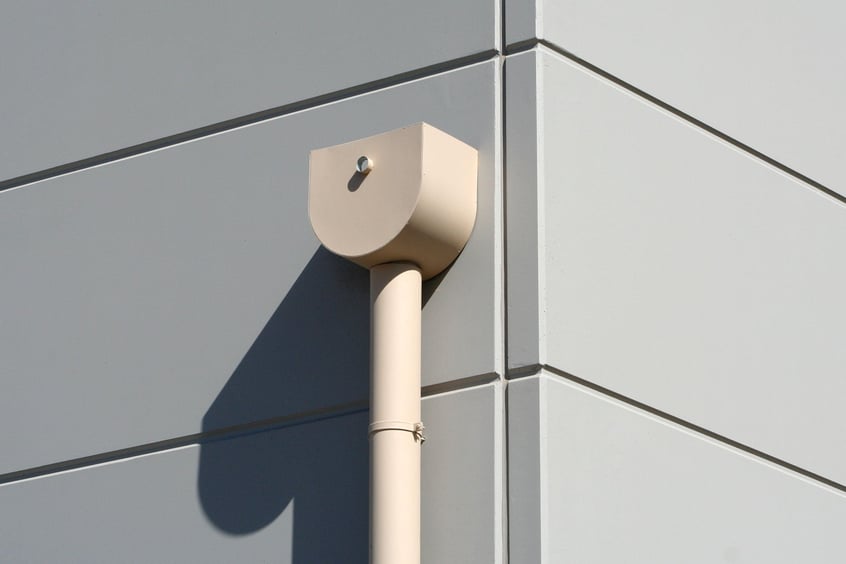

Curved Rainheads

The smooth flowing, simple lines of the curved rainheads are designed to form a seamless blend with any building. With a classic shape that has a timeless appeal, they will complement both traditional and modern architecture. The understated lines not only exude a sense of quality, they also make the range one of the most economical styles.

Rainheads Rainhead Curved Half Cylinder

Half Cylinder

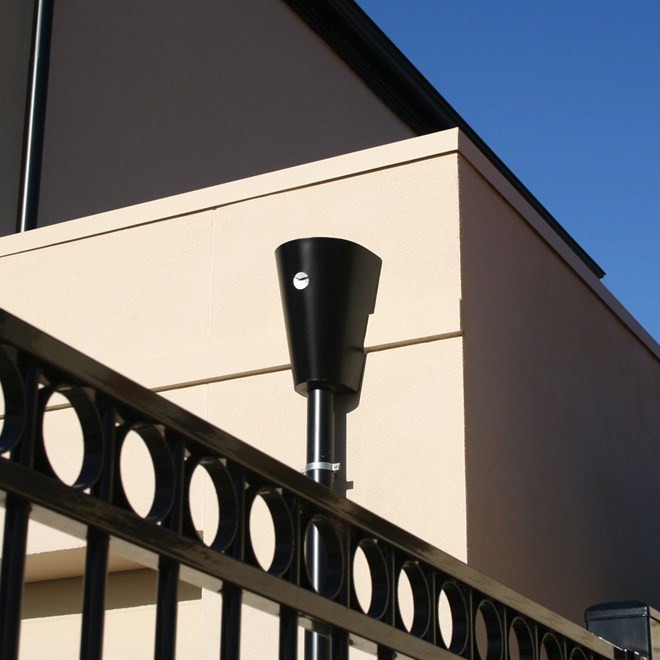

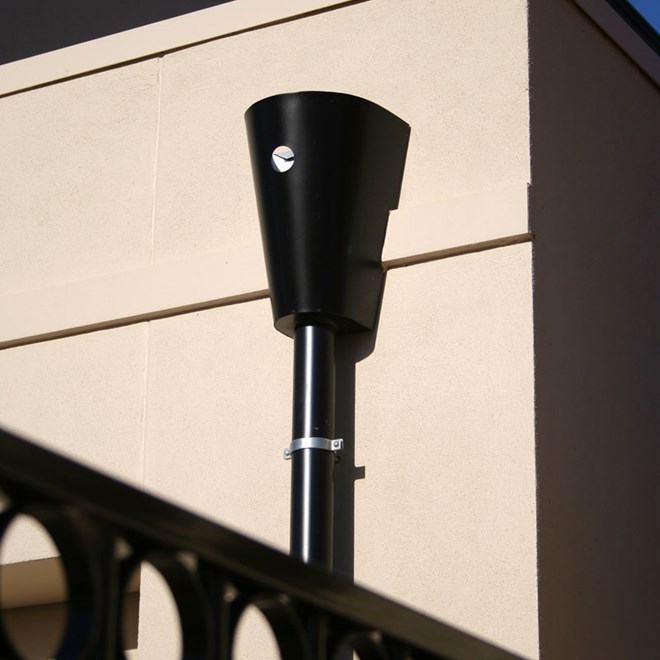

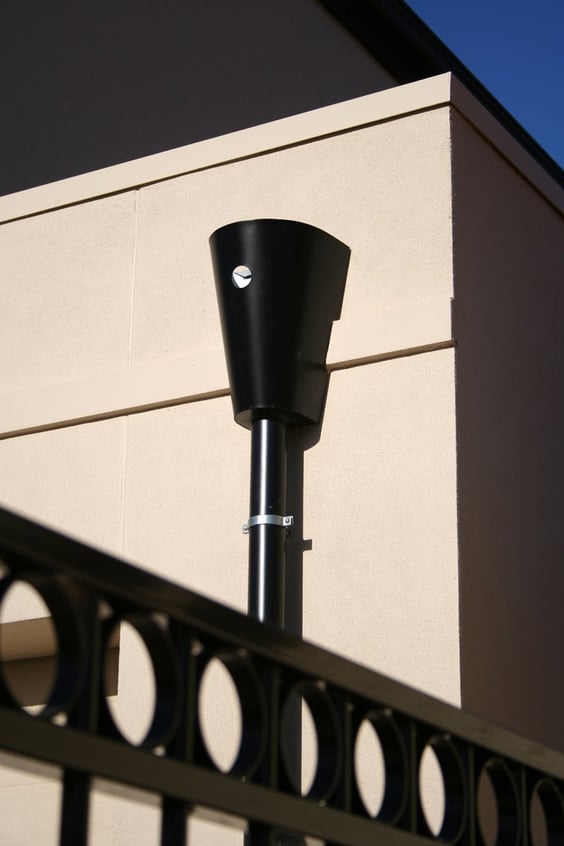

Rainheads Rainhead Curved Conical

Conical

Rainheads Rainhead Curved Ned Kelly

Ned Kelly


Round Rainheads

Create a bold, dramatic statement with the modern curves of the round rainhead range. Combined with the use of strong, vivid colours, their design will impart any building with individuality and flair. With six styles to choose from, the range offers a broad selection of geometric designs to complement any form of architecture.

Rainheads Rainhead Round Circular

Circular

Rainheads Rainhead Round Half Round

Half Round

Rainheads Rainhead Round Quarter Round

Quarter Round

Rainheads Rainhead Round U-Shape

U-Shape

Rainheads Rainhead Round Concave

Concave

Rainheads Rainhead Round Convex

Convex

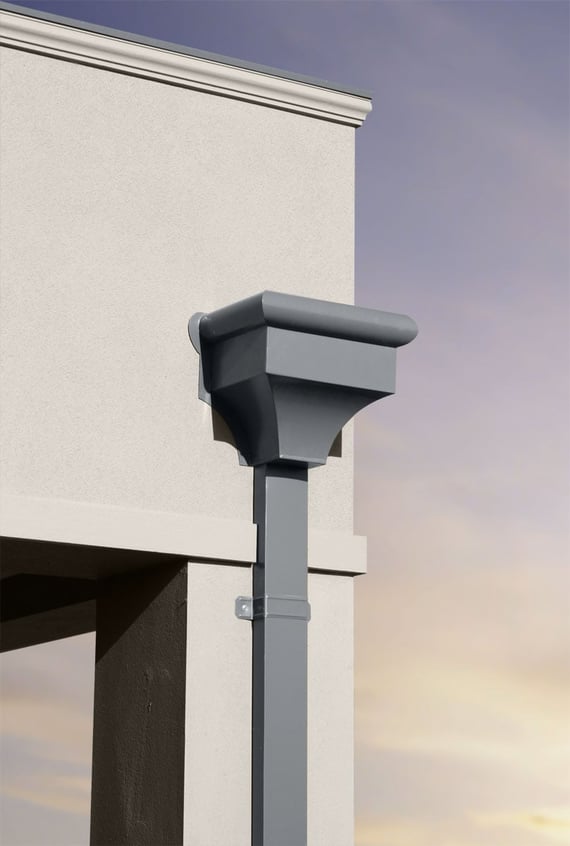

Segmented Rainheads

Add a touch of class with the prestigious and skilfully made segmented rainheads. Their design works well with ornate and intricate architecture.

Rainheads Rainhead Segmented Colonial

Colonial

Rainheads Rainhead Segmented Ornate

Ornate

Selecting a Size and Style

Stratco rainheads are suitable for both residential and industrial applications. Stratco can manufacture any custom rainhead design to your design.

Or choose from one of our five standard rainhead styles:

Rainheads Rainhead Feature

  • Box
  • Tapered
  • Curved
  • Round
  • Segmented

Choose from a range of materials including:

  • Zinc/al
  • Pre-painted colour finish
  • Stainless steel
  • Aluminium

Rainhead Sizes

When determining the size of your rainhead you will need to consider such things as rainfall intensity, occurrence, use of the building and the size of the box gutter. This is best done by your architect, engineer or building designer and should conform to the requirements of AS/NZS 3500.3:2003 Plumbing and Drainage.

Sizes
Length Width Height Length Width Height
200 175 200 375 325 325
250 175 200 400 250 300
275 175 200 400 300 300
275 200 225 400 350 300
275 225 225 400 375 325
300 225 225 450 300 300
350 225 250 450 250 375
300 225 250 500 225 225
350 300 225 500 300 300
325 325 250 600 300 300
350 300 300 600 325 350
375 250 275 600 300 375
375 300 300 600 325 375

Ordering Your Rainhead

Download the Rainhead Ordering Brochure.

When ordering a rainhead you must specify the dimensions of the design. You will need to know the length, width and height. Depending on the style you choose, you may also need to know the bead height. See below for three examples showing the dimensions you will require.

All rainheads include a fitted downpipe outlet which is available in a wide range of sizes. When ordering your Stratco Rainhead it is important that you specify the size and position of the downpipe outlet.

An overflow provision is also included on all standard Stratco rainheads. The size and position of the overflow needs to be specified when your rainhead order is placed. Overflow spouts are available as optional extras, in round, square or rectangular shapes.

Rainheads Rainhead Ordering Tapered

Tapered

Rainheads Rainhead Ordering Conical

Conical

Rainheads Rainhead Ordering Ornate

Ornate
