Curved Flashings

Stratco

SKU: Curved-Flashings

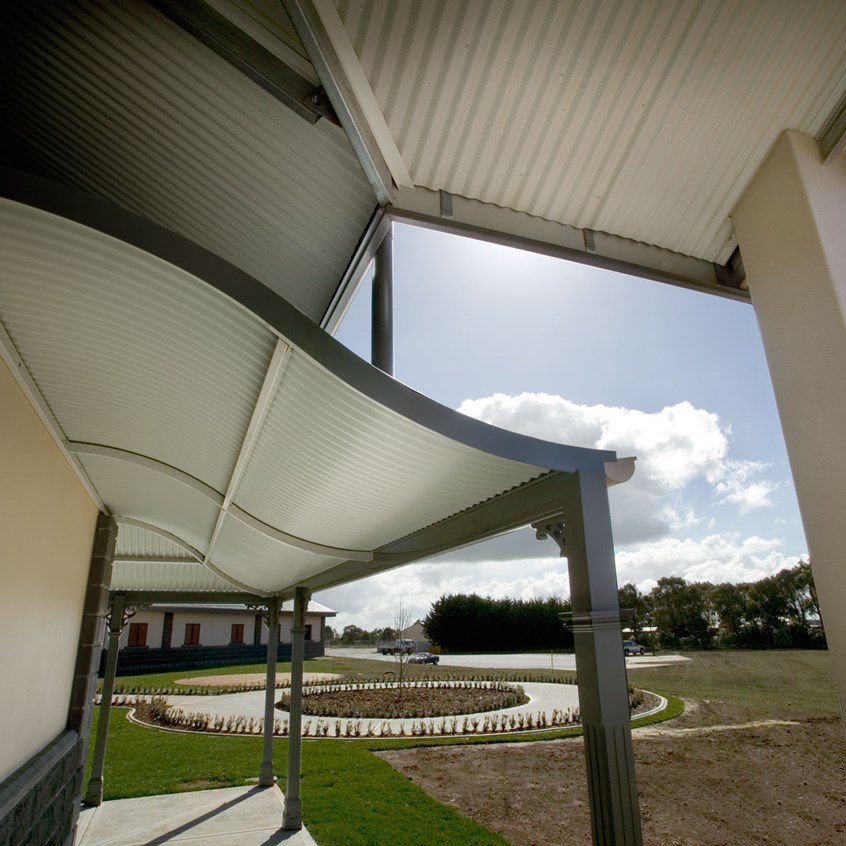

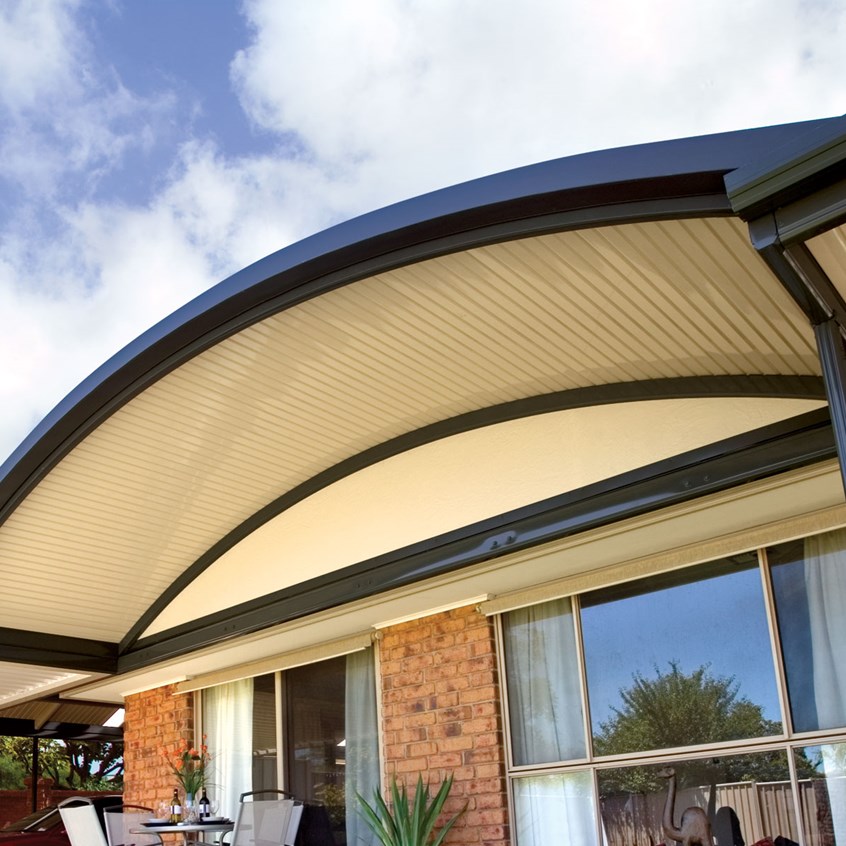

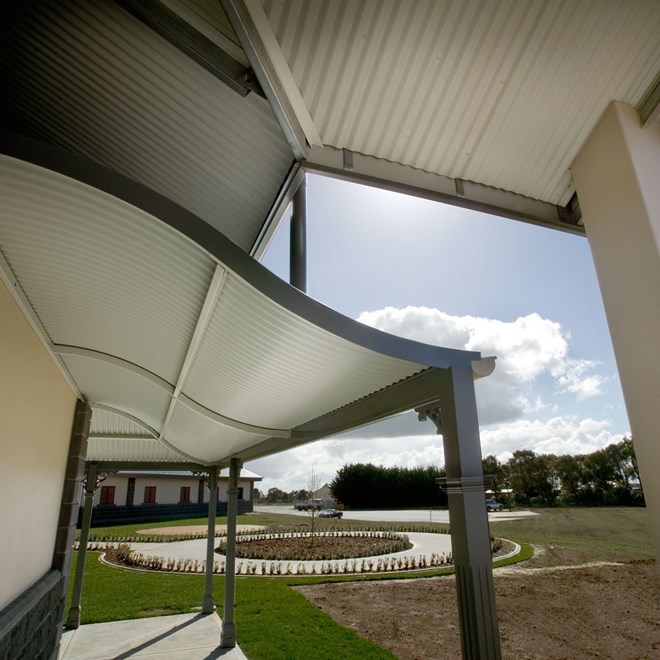

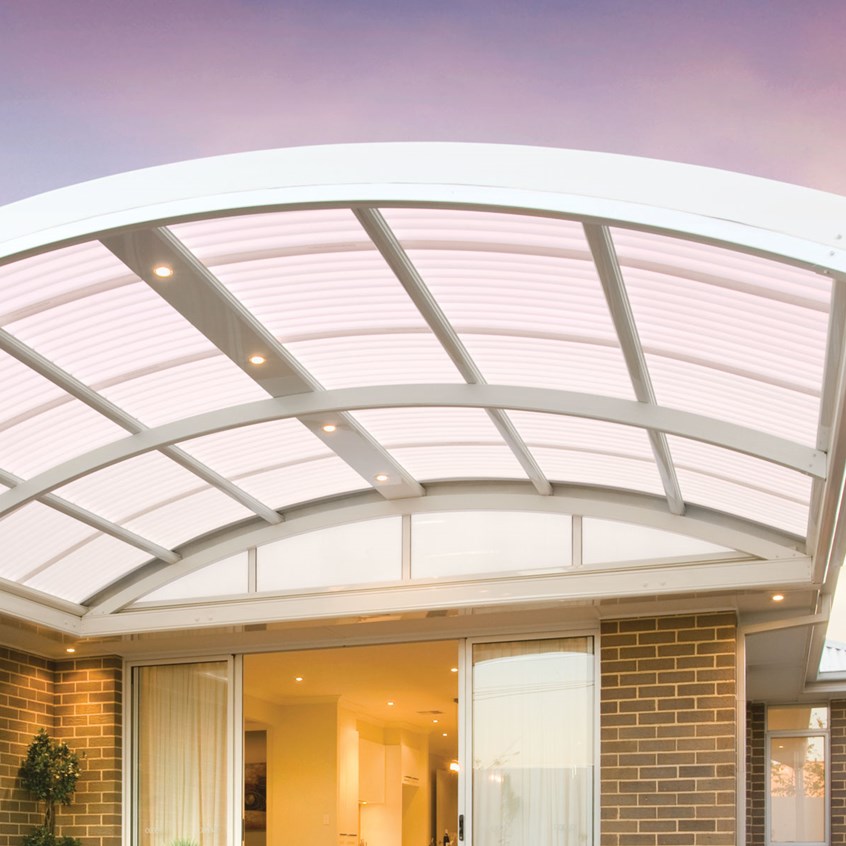

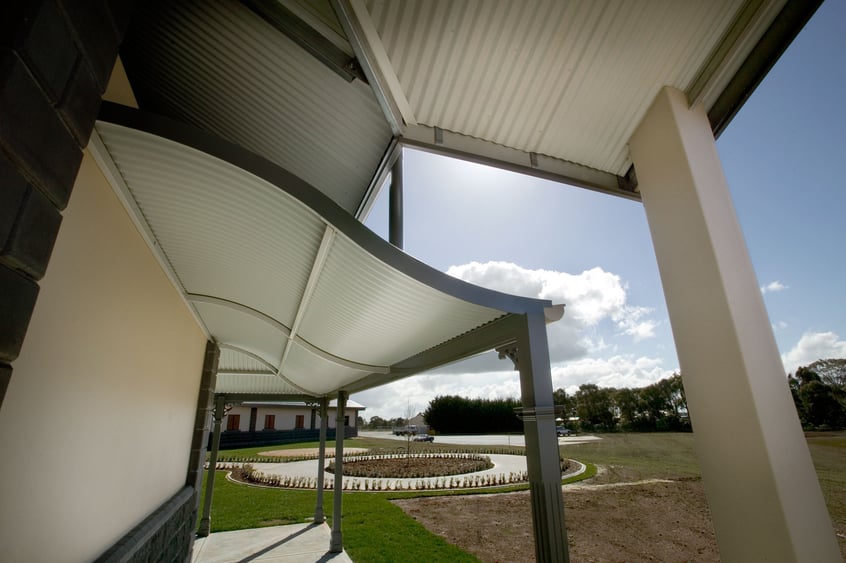

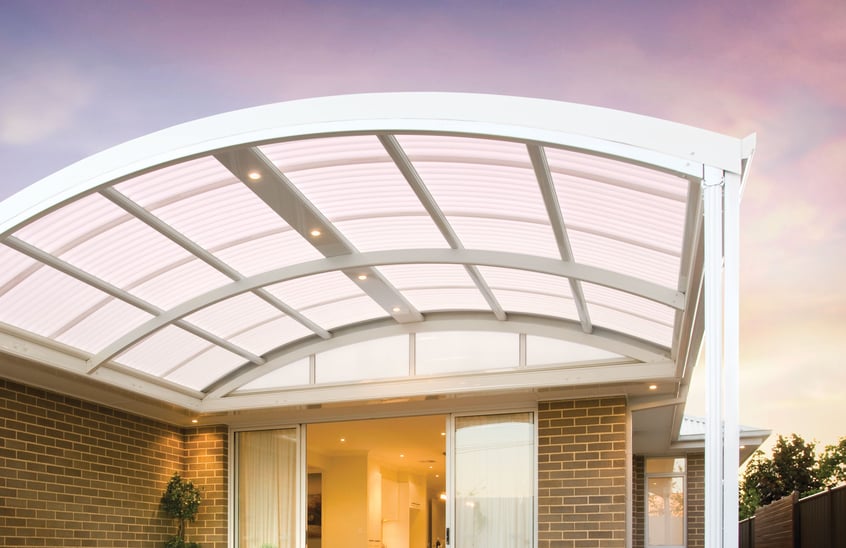

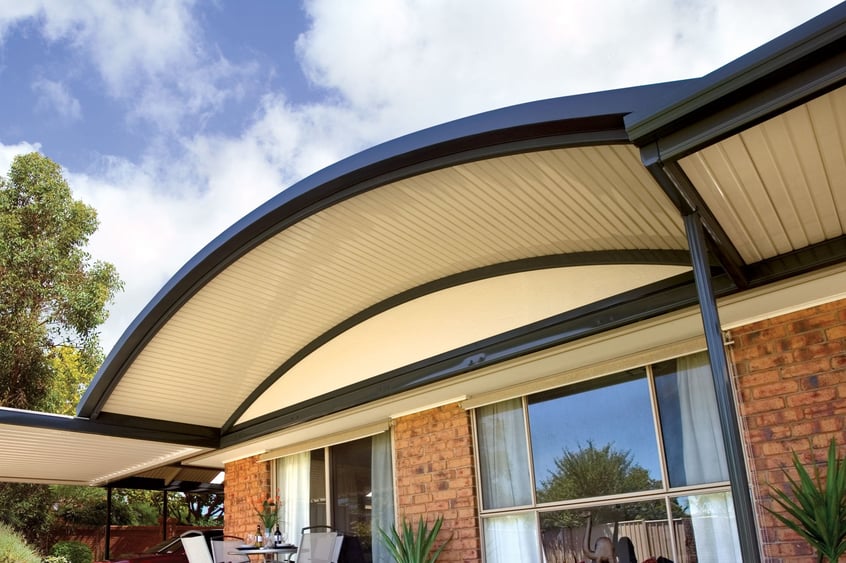

Standard or custom curved flashings are available from Stratco to suit a wide range of applications. Standard flashings are available in pre-painted colour steel, zinc/al, and galvanised finish. Custom flashings are available in a wide range of materials, lengths and thicknesses.

Curved Flashing Profiles

  • Curved Apron
  • Convex Curved Barge
  • Concave Curved Barge
  • Curved Barge - Part Curve
  • Curved Parapet
  • Curved Barrel Vault Barge
  • Curved Box Gutter
  • Curved Corner
  • OG Curved

Curved Apron

  1. Nominate Face (a), Tail (b) and Break (x) dimensions. (Note: Maximum break (x) = 10mm).
  2. Nominate flashing type and Radius (r).

TYPE 1

Curved Apron - External

Flashings Roof Flashing Curved Apron External

Flashings Roof Flashing Curved Apron External Profile

TYPE 2

Curved Apron - Internal

Flashings Roof Flashing Curved Apron Internal

Flashings Roof Flashing Curved Apron Internal Profile

TYPE 3

Curved Apron - Arch

Flashings Roof Flashing Curved Apron Arch

Flashings Roof Flashing Curved Apron Arch Profile

TYPE 4

Curved Apron - Reverse Arch

Flashings Roof Flashing Curved Apron Reverse Arch

Flashings Roof Flashing Curved Apron Reverse Arch Profile

Convex Curved Barge - With Straight

  1. Nominate Face (a), Tail (b) and Break (x) and (y) dimensions. (Note: Maximum break (x) and (y) = 10mm).
  2. Nominate the straight length.
  3. Nominate flashing type and Radius (r).

TYPE 5

Convex Barge - Left Hand

Flashings Roof Flashing Curved Convex Barge Left Hand

Flashings Roof Flashing Curved Convex Barge Left Hand Profile

TYPE 6

Convex Barge - Right Hand

Flashings Roof Flashing Curved Convex Barge Right Hand

Flashings Roof Flashing Curved Convex Barge Right Hand Profile

Concave Curved Barge - With Straight

  1. Nominate Face (a), Tail (b) and Break (x) and (y) dimensions. (Note: Maximum break (x) and (y) = 10mm).
  2. Nominate flashing type and Radius (r).

TYPE 7

Concave Barge - Left Hand

Flashings Roof Flashing Curved Concave Barge Left Hand

Flashings Roof Flashing Curved Concave Barge Left Hand Profile

TYPE 8

Concave Barge - Right Hand

Flashings Roof Flashing Curved Concave Barge Right Hand

Flashings Roof Flashing Curved Concave Barge Right Hand Profile

Curved Barge - Part Curve

  1. Nominate Face (a), Tail (b) and Break (x) and (y) dimensions. (Note: Maximum break (x) and (y) = 10mm).
  2. Nominate flashing type and Radius (r).

TYPE 9

Convex Barge - Arch

Flashings Roof Flashing Curved Convex Barge Arch

Flashings Roof Flashing Curved Convex Barge Arch Profile

TYPE 10

Concave Barge - Reverse Arch

Flashings Roof Flashing Curved Concave Barge Reverse Arch

Flashings Roof Flashing Curved Concave Barge Reverse Arch Profile

Curved Parapet

  1. Nominate Sides (a) and (c), Head (b) and Break (x) and (y) dimensions. (Note: Maximum break (x) and (y) = 10mm).
  2. Nominate flashing type and Radius (r).

TYPE 11

Curved Parapet

Flashings Roof Flashing Curved Parapet

Flashings Roof Flashing Curved Parapet Profile

TYPE 12

Curved Parapet - Arch

Flashings Roof Flashing Curved Parapet Arch

Flashings Roof Flashing Curved Parapet Arch Profile

Curved Barrel Vault Barge - Full Curve

  1. Nominate Face (a), Tail (b) and Break (x) and (y) dimensions. (Note: Maximum break (x) and (y) = 10mm).
  2. Nominate flashing type and Radius (r).

TYPE 13

Barrel Vault Barge - Arch

Flashings Roof Flashing Curved Barrel Vault Barge Arch

Flashings Roof Flashing Curved Barrel Vault Barge Arch Profile

Curved Box Gutter

  1. Nominate Face (a), Tail (b) and Break (x) and (y) dimensions. (Note: Maximum break (x) and (y) = 10mm).
  2. Nominate flashing type and Radius (r).

TYPE 14

Curved Box Gutter

Flashings Roof Flashing Curved Box Gutter

Flashings Roof Flashing Curved Box Gutter Profile

Curved Corner

  1. Nominate Face (a), Tail (b) and Break (x) and (y) dimensions. (Note: Maximum break (x) and (y) = 10mm).
  2. Nominate flashing type and Radius (r).

TYPE 15

Curved Corner - External

Flashings Roof Flashing Curved Corner External

Flashings Roof Flashing Curved Corner External Profile

TYPE 16

Curved Corner - Internal

Flashings Roof Flashing Curved Corner Internal

Flashings Roof Flashing Curved Corner Internal Profile

OG Curved

Contact Stratco for prices and ordering procedures on OG Curve Flashings.

OG Curved

Flashings Roof Flashing Curved OG Curved

Flashing Materials

Stratco curved flashings are available in unpainted zinc/al, pre-painted colour steel and galvanised finish. The table below shows the standard material specifications for curved flashings.

Material Specifications
Material Base Metal Thickness (mm) Max Width (mm) Max Length (mm) Max Radius (mm)
Galvanised 0.55 500 6000 450
Zinc/al 0.55 500 6000 450
Colour 0.55 500 6000 450

As well as the standard materials specified above, Stratco may able to customise curved flashings to suit your material specifications. These custom flashings can be made in a range of materials, lengths and thicknesses.

Contact your local Stratco for more details on custom curved flashing specifications.

Receiving Orders

Stratco prefer to receive orders by email or by fax. Stratco will accept, but take no responsibility for orders placed by phone.


Flashing Drawings

Standard Flashings

Flashings Roof Flashing Curved Ordering Standard

When drawing standard flashings, letters describe the dimensions of each plane on the flashing, 'r' describes the radius and numbers describe the included angle. You need to advise us of all dimensions, and identify any angle that is not 90 degrees.

Tapered Flashings

Flashings Roof Flashing Curved Ordering Tapered

Tapered flashings use the same system as non-tapered flashings. The letter 'r' describes the radius. Angles will always be constant throughout the flashing. The dimensions closest to you, described as 'NEAR' have a '1' added to the letter representing the dimension, and the dimensions furthest away, described as 'FAR' have the number '2'. Curved box gutter would therefore be described as shown in the diagram on the right.

Order Methods

Clock Method For Placing Orders By PhoneFlashings Roof Flashing Curved Ordering Clock

Commence at the centre of the clock. Draw a straight line from the centre to the number on the clock (1-12) at the required angle, representing the first line of your flashing drawing. Where the pen stops becomes the centre of the clock for the next line. Complete the flashing using this method. For tapered flashings quote nearest edges first. Repeat for the back (use the same letters) unless otherwise indicated.

Page Drawing MethodFlashings Roof Flashing Curved Ordering Page

Begin drawing the flashing at the centre of the page. Describe the direction of the line as you draw it. Advise if the line moves vertically up or down the page, horizontally left or right, or to which page corner. Advise the length of the line. Do this for every line in the flashing. Advise of the radius and any included angles.
