ALPOLIC™ ACP
ALPOLIC™
SKU: 1
Now available from Stratco throughout New Zealand, ALPOLIC™ is a global market leading Aluminium Composite Panel (ACP) brand, manufactured by Mitsubishi Chemical in Japan, United States and Germany. With over 50 years of experience in researching, developing and manufacturing ACP for architectural buildings, you can trust ALPOLIC™ ACP as an innovative, high-quality product backed by Stratco's customer service. Not only is ALPOLIC™ ACP aesthetically pleasing and highly versatile, it is high quality, sustainable and safe option. Designers, architects and builders all over the world rely on ALPOLIC™ ACP for the implementation of unique architectural projects - for both existing and new buildings.ALPOLIC™ ACP Features
ALPOLIC™ provides a range of great features that stem from the ALPOLIC™ coating and laminating technology, including:
- Flatness: Perfectly flat panel with high rigidity
- Perfect Finish: Consistent color and smooth coating
- Weather Resistant: Excellent corrosion and weather-resistance properties
- Lightweight Product: Significantly lighter than solid metals of equivalent rigidity
- Fire Performance: Fire retardant core and fire safe properties
- Workability: Easy to fabricate for versatile applications using common machinery and tools
- Sustainability: Recylcable material manufactured with care for the environment
Composition of ALPOLIC™ ACP
ALPOLIC™ ACP and its affiliated products commonly have the following composition.
ALPOLIC™ Product Range
View the full ALPOLIC™ ACP Product Range below.
ALPOLIC™ A1 is a fire safe aluminium composite material. It has a non-combustible mineral core that does not contain any polyethylene. ALPOLIC™ A1 can be applied as interior or exterior wall cladding or roofing. It is suitable for new buildings and refurbishments. It can be applied anywhere a non-combustible material is required.
ALPOLIC™ A1 Composition
Standard Dimensions
- Thickness (tolerance +/-0.2mm): 4mm
- Width (tolerance +/-2 mm): 1270,1575 mm
- Bow tolerance: +/- 0.5% of the length or width
- Skin thickness: 0.5 mm
- Length (tolerance +/-1 m/m): 1800-7200 mm
- Diagonal difference: Max 5.0 mm
Characteristics (for standard dimensions)
ALPOLIC™ A1 ISO Certifications
ISO 9001 : 2015 Certified
The production of ALPOLIC™ is ISO 9001:2015 compliant throughout the design, development, manufacture and sales.
ISO 140001 : 2015 Certified
ALPOLIC™ products are manufactured in factories that have ISO 14001 : 2015 certification.
ALPOLIC™ NC is a fire safe aluminium composite material. It contains a non-combustible mineral core with no polyethylene. ALPOLIC™ NC can be used as an interior or exterior wall cladding or roof covering in both new buildings and refurbishments. it is siutable wherever a non-combustible material is required.
ALPOLIC™ NC Composition
Standard Dimensions
- Thickness (tolerance +/-0.2mm): 4mm
- Width (tolerance +/-2 mm): 1270,1575 mm
- Bow tolerance: +/- 0.5% of the length or width
- Skin thickness: 0.5 mm
- Length (tolerance +/-1 m/m): 1800-7200 mm
- Diagonal difference: Max 5.0 mm
Characteristics (for standard dimensions)
ALPOLIC™ NC ISO Certifications
ISO 9001 : 2015 Certified
The production of ALPOLIC™ is ISO 9001:2015 compliant throughout the design, development, manufacture and sales.
ISO 140001 : 2015 Certified
ALPOLIC™ products are manufactured in factories that have ISO 14001 : 2015 certification.
ALPOLIC™ A2 is an aluminium composite material (ACM) with a high fire retardant core. It can be used as either exterior and interior cladding or roofing. It is suitable for both new buildings and retrofit applications. ALPOLIC™ A2 has been classified as a super fire-safe grade among various types of ACM around the world.
ALPOLIC™ A2 Composition
ALPOLIC™ A2 is manufactured with a non-combustible mineral high filled core placed between two skins of 0.5mm thick aluminium alloy (3105-H14). The topside is coated with fluorocarbon paint and the underside is a wash coating or a service coating.
ALPOLIC™ A2 Standard Panel Dimensions
Thickness: 4mm
Width: 1270,1575mm
Length: Less than 7200mm
ALPOLIC™ A2 Color Options
There are 4 color types:
- Solid Colors
- Metallic Colors
- Sparkling Colors
- Prismatic Colors and Patterns (Stone, Timber, Metal and Abstract).
All colors use fluorocarbon coating. Custom colors are also available for all finishes upon request with minimum quantiy requirements.
See standard color options below:
ALPOLIC™/fr is a fire-retardant aluminiun composite material (ACM). It is made with aluminum skins and a mineral filled fire retardant core. Compared with solid aluminum panels, ALPOLIC™/fr is lightweight, flat and rigid. The surface finish is a coating of fluorocarbon paint. Die Coater is used in the continuous coil coating line to ensure consistent color and a smooth coating. The coating variation includes Patterns (Stone, Timber, Metal, and Abstract), produced using a unique image transfer coating method.
ALPOLIC™/fr Composition
ALPOLIC™/fr is made with a fire-retardant core between 2 skins of 0.5mm thick aluminum. Total thickness is either 3, 4 or 6mm. The topside is coated with fluorocarbon paint and the underside has a wash coating.
ALPOLIC™/fr Panel Dimensions
Thickness: 3, 4 and 6mm
Standard width: 965, 1270 and 1575mm
Length: Less than 7200mm
ALPOLIC™ A2 Color Options
There are 4 color types:
- Solid Colors
- Metallic Colors
- Sparkling Colors
- Patterns (Stone, Timber, Metal and Abstract).
All colors use fluorocarbon coating. Custom colors are also available for all finishes upon request with minimum quantiy requirements.
See standard color options below:
TCM, SCM and ZCM are sandwiched panels composed of real metals including titanium, stainless steel or zinc skin and a fire-resistant core. TCM has unrivalled corrosion resistance and is suitable for application in highly corrosive environments. SCM is rust-resistant. It is suitable for both roofing and external cladding applications. ZCM has a grey appearance that evolves through natural weathering.
TCM Composition
SCM Composition
ZCM Composition
TCM Standard Panel Properties:
Thickness: 4mm
Width: 1000mm
Length: Less than 5000mm
SCM Standard Panel Properties:
Thickness: 4mm
Width: 1000mm
Length: Less than 5000mm
ZCM Standard Panel Properties:
Thickness: 4mm
Width: 965mm
Length: 3708mm
Color Options
Left to right:
- TCM Dull
- SCM Hairline
- SCM Dull
- ZCM Pre-weathered Grey
ALPOLIC™/fr LT is composed of two 0.3mm thick aluminum skins and a fire-retardant core. The effective sides are finished with a polyester coating. The material is lightweight and rigid in comparison to alternatives and can be used for either interior walls, columns, ceilings or partitions.ALPOLIC™/fr LTl is also suitable for light outdoor applications including soffits, awnings, signage, parapets and more.
ALPOLIC™/fr LT Composition
ALPOLIC™/fr LT is manufactured with a non-combustible mineral core containing a small amount of low density polyethylene placed between two 0.3mm aluminium skins. The core, indispensable for fire safety of interior application, is grey with hints of carbon black for a great looking cut edge.
ALPOLIC™/fr LT Standard Panel Dimensions
Thickness: 3mm
Width: 1220mm (914mm in Aluminum Hairline P)
Length: 2440mm (2438mm in Aluminum Hairline P)
ALPOLIC™/fr LT Color Options
ALPOLIC™/fr LT is available in 4 color types:
- Reversible
- Single
- Stone
- Timber.
All color types are polyester coating produced in a continuous coil coating line for high quality finishing.
ALPOLIC™ is the conventional aluminium composite material (ACM) composed of 2 aluminium skins and a plastic core. ALPOLIC™ is most often used for signage, commonly applied on the canopies of petrol stations and used for corporate signage around the world. ALPOLIC™ is lighter and more rigid and cheaper than solid aluminum sheets of the equivalent rigidity. ALPOLIC™ uses a unique Die Coater coating method to deliver consistent and smooth coating. We can also arrange custom coatings and alternative surfaces upon reuqest.
ALPOLIC™ Composition
ALPOLIC™ is composed of a thermoplastic core between two 0.5mm aluminum skins. Total thickness is 3, 4 or 6mm. The topside is coated with fluorocarbon paint and the underside is a wash coating.
ALPOLIC™ Standard Panel Dimensions
Thickness: 3, 4 and 6mm
Width: 965, 1270 and 1575mm
Length: Less than 7200mm
ALPOLIC™ Color Options
There are 4 color options shown below, left to right:
- Solid Colors
- Metallic Colors,
- Sparkling Colors
- Patterns
All colors are fluorocarbon coating produced in a continuous coil coating line. We can also arrange custom coatings and alternative surfaces upon reuqest.
AL-LEADER™ is an aluminium composite material (ACM) offering significant reduction of weight and cost. This is acheived by using thin aluminum skins and a foamed plastic core. AL-LEADER™ comes with a quality polyester coating finish as well as excellent flatness. AL-LEADER™ can be used for corporate signage, direction signage and more. It is currently used for a broad range of applications around the world.

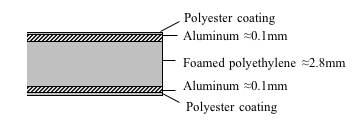

AL-LEADER™ Composition
AL-LEADER is produced with a thermoplastic core of foamed polyethylene placed between two skins of approximately 0.1mm thick aluminum.
AL-LEADER™ Standard Panel Dimensions
Thickness: 3mm
Width: 1220mm
Height: 2440mm

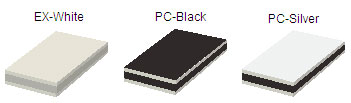

AL-LEADER™Color Options:
Available in EX-White (combination of 30% and 70% gloss), PC-Black and PC-Silver.
ALPOLIC™/fr-RF is a reflective finish aluminium composite material (ACM) with a reflective finish and a non-combustible mineral filled core. It is most commonly used for ceiling or interior wall applications.
ALPOLIC™/fr-RF Composition
ALPOLIC™/fr-RF is composed of a non-combustible mineral-filled core sandwiched between two skins of 0.5mm thick aluminium alloy.
ALPOLIC™/fr-RF Standard Panel Dimensions
Thickness: 3mm
Width: 1220mm
Length: 2440mm
ALPOLIC™/fr-RF Color Options
The ALPOLIC™/fr-RF surface is a reflective finish.
